Earthing Switch

The dielectric insulation requirements of Sangao high quality earthing switch is the same as those of its associated disconnector. Similarly, the earthing switch also needs to match the short-time fault/short-circuit current withstand capacity of its associated disconnector. In addition, the earthing switch used for transmission line switching needs to disconnect the electromagnetic induction and electrostatic capacitance current induced by the adjacent line/circuit

In the substation, the earthing switch is used in conjunction with the disconnector (the earthing switch can also be independent). The earthing switch (earthing disconnector) is used to enable the corresponding part of the circuit (and the equipment connected to it) to enter and work safely so that it reaches the ground potential. The operation of the earthing switch is interlocked with the disconnector to prevent erroneous operation, that is, the contacts are closed when the circuit is energized.

The earthing switch is usually integrated into the integral assembly of the disconnector, or is a separate (independent) device with its own supporting structure. However, integration into the disconnector is a more common design.

View as

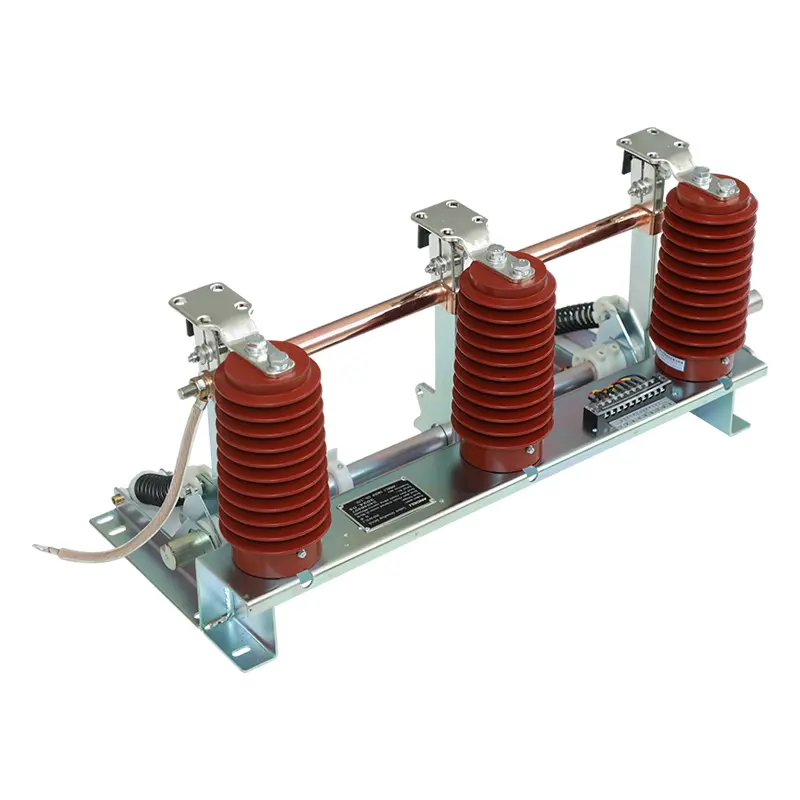

High Voltage Grounding Switch

The main function of the High Voltage Grounding Switch in the switch cabinet is to protect the technicians and the switch cabinet from accidental operation. It can be closed to prevent short-circuit current. When a line grounding fault occurs, the grounding switch can provide a grounding fault current source. Please choose Sangao high quality High Voltage Grounding Switch to reduce your work troubles!

Read More Send Inquiry

High Voltage Earthing Switch

Sangao high quality High Voltage earthing Switch is also called earthing switch. Earthing switch and earthing switch are used interchangeably. It is a protective device included in switchgear components such as circuit breakers and isolators. When the circuit breaker is removed and shaken out, the earthing switch automatically grounds the busbar section close to the circuit breaker. For isolators, the earthing switch contacts the busbar when the isolator isolates the circuit, releasing any charge that may have accumulated there.

Read More Send Inquiry

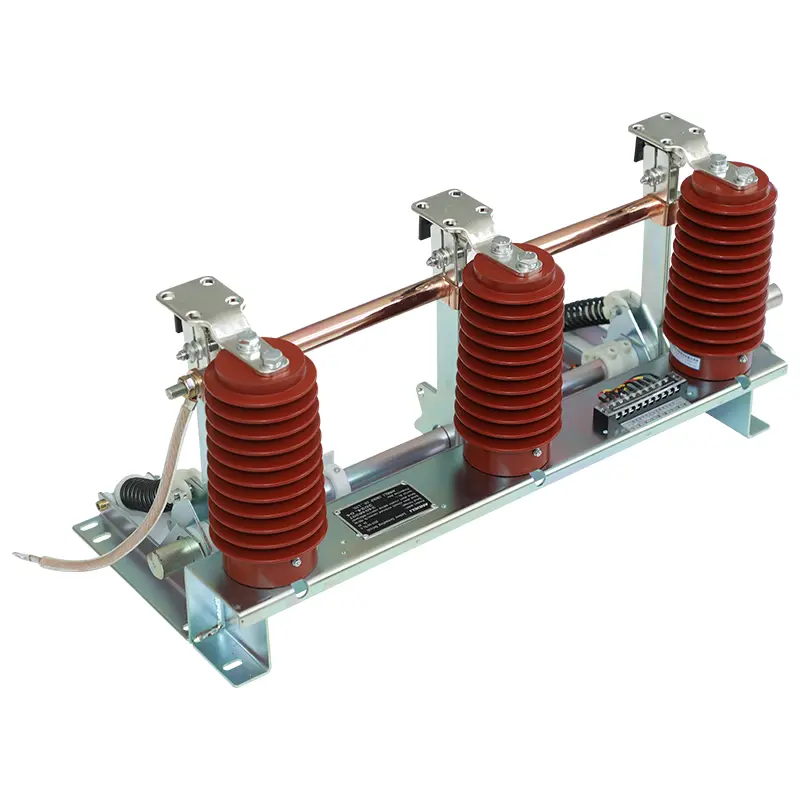

Indoor Grounding Switch

Sangao, a China company has launched the Indoor Grounding Switch, an advanced high performance product designed to meet the highest technical standards. This grounding switch has undergone rigorous evaluation and complies with GB1985 and IEC62271 standards, and is suitable for 3-12kV, three-phase AC 50Hz power systems. Every distribution system must be equipped with protective devices to protect electrical appliances and equipment from the impact of accidents. It has short circuit closing capability, which can protect other electrical equipment from potential damage, and can be seamlessly integrated with various medium voltage switchgear. In addition, it is also a key protective component in the maintenance process of medium voltage electrical equipment.

Read More Send Inquiry

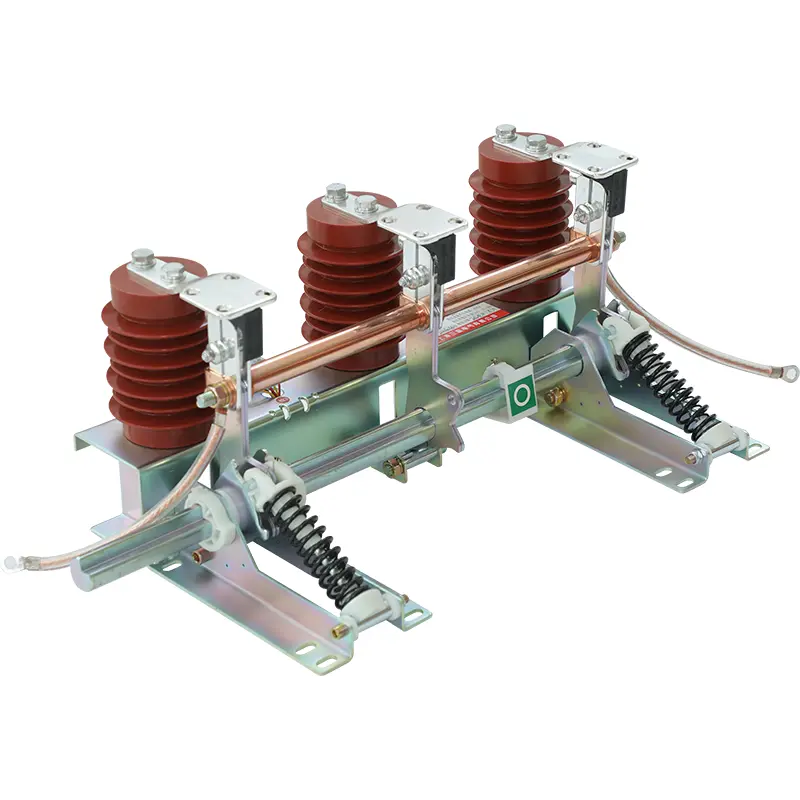

Indoor Electric Earthing Switch

Sangao High Quality Indoor Electric Earthing Switch GB1985 and IEC62271 standards, suitable for 24kV three-phase AC 50Hz power systems. It has short-circuit closing capability, which can protect connected electrical equipment from potential damage, and can be seamlessly integrated with various high-voltage switchgear. In addition, it also plays a crucial protective role in the maintenance process of high-voltage electrical equipment. The Indoor Electric Earthing Switch meets the highest technical standards. It protects critical electrical equipment in the power system and is highly suitable for various high-voltage switchgear applications.

Read More Send Inquiry

<1 >

Sangao welcomes you to purchase Earthing Switch directly from the place of origin. As a professional factory and supplier in China, we have an independent team to produce high-quality products.
