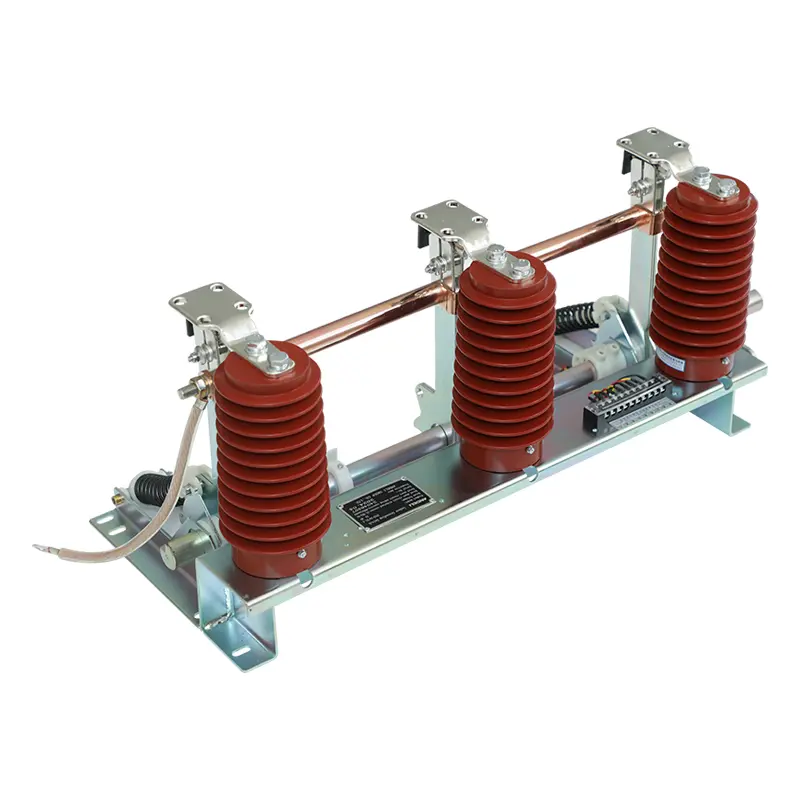

High Voltage Electrical Isolating Motorized Earthing Switch

High Voltage Electrical Isolating Motorized Earthing Switch from SanGao meets the grounding control needs of substations, industrial power supply networks and automatic switchgear construction projects. Relying on SanGao’s long-term high-voltage R&D strength, this apparatus pairs grounding safeguard with motorized actuation, realizing safer, more streamlined grounding operation under indoor and outdoor high-voltage conditions.

Motorized Grounding Control for Modern Electrical Systems

In traditional high-voltage maintenance operations, technicians may need to manually operate grounding mechanisms inside or near switchgear equipment. For large substations, automated distribution systems, and remote-controlled switchgear, manual operation can increase labor requirements and expose personnel to unnecessary risks.

This High Voltage Electrical Isolating Motorized Earthing Switch allows the grounding operation to be controlled through an electrical drive mechanism, making it suitable for systems that require remote monitoring and automated operation.

The main functions include:

• Providing grounding connection for isolated electrical equipment

• Supporting remote or controlled operation through motor drive

• Reducing direct manual operation frequency

• Improving coordination with automated switchgear systems

For power utilities and industrial users, motorized grounding equipment helps improve operational procedures where fast response and centralized control are required.

How Does the Motor Drive Improve Operation Safety?

The operating mechanism is one of the most important parts of a grounding switch. A stable motor-driven system ensures that the grounding blade reaches the correct position under controlled operating conditions.

The High Voltage Electrical Isolating Motorized Earthing Switch working process includes:

1. The control signal activates the operating motor.

2. The motor transfers torque through the operating mechanism.

3. The transmission system drives the grounding knife toward the closing or opening position.

4. The conductive parts establish or disconnect the grounding path.

Compared with fully manual operation, motorized control provides advantages in:

Remote Operation Capability

Operators can manage grounding procedures from a safer control position when the switchgear system supports automation.

Better Operation Consistency

The motor drive reduces differences caused by manual operating force, helping maintain repeatable switching actions.

Easier Integration With Smart Systems

The equipment can be applied in projects requiring electrical control, monitoring, and automation coordination.

Technical Specifications

Why Choose SanGao for Motorized Earthing Applications?

When selecting High Voltage Electrical Isolating Motorized Earthing Switch, customers need more than a standard product. They need a manufacturer that understands switchgear integration and field operation requirements.

SanGao provides:

High Voltage Manufacturing Experience

SanGao produces various high-voltage products, including grounding switches, disconnectors, load switches, vacuum circuit breakers, and related equipment.

Engineering Support for System Integration

Different substations and switchgear systems may require different installation methods. SanGao communicates with customers to confirm technical requirements before production.

Production and Testing Capability

By managing design, manufacturing, and inspection internally, SanGao helps customers maintain better control over project quality.

Packaging Protection for Motorized Electrical Equipment

Motor-driven grounding equipment contains both mechanical and electrical components, requiring careful transportation protection.

SanGao uses export-compliant wooden crates to help:

• Protect motor and transmission parts

• Prevent impact damage

• Maintain equipment stability during shipment

Before installation, customers can inspect external condition and verify operating components according to technical documents.

FAQ

1. What is the advantage of motorized operation compared with manual grounding?

Motorized operation allows controlled operation from a safer position and is suitable for systems requiring automation or remote management.

2. Can this equipment be integrated into automated switchgear systems?

Yes. High Voltage Electrical Isolating Motorized Earthing Switch is designed for applications where electrical control and switchgear automation are required.

3. What protection does grounding provide during maintenance?

It helps create a grounding path after isolation, reducing risks caused by unexpected voltage, induction, or static electricity.

4. Where is this equipment commonly installed?

It is commonly used in substations, industrial distribution systems, and medium voltage switchgear requiring controlled grounding operation.
