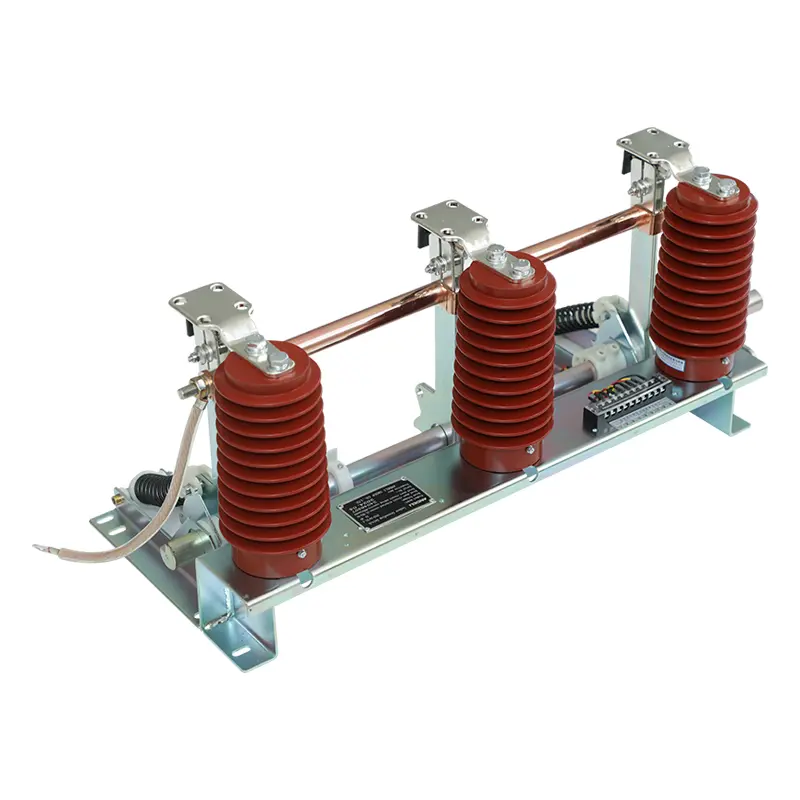

Indoor AC Ground Switch with High Speed Earth Knife

Indoor AC Ground Switch with High Speed Earth Knife from SanGao delivers specialized medium-voltage grounding gear dedicated to risk control during indoor power equipment maintenance. Covering 3kV to 12kV three-phase AC 50/60Hz working conditions, its high-speed earth knife design shortens grounding action time and minimizes safety threats for maintenance crews.

Fast Grounding Response for Safer Medium Voltage Maintenance

During high-voltage equipment maintenance, grounding speed and mechanical reliability directly affect operator safety. When a circuit has been isolated, the grounding switch provides a controlled grounding path to prevent unexpected voltage hazards.

The high-speed earth knife design allows the grounding operation to be completed quickly through coordinated movement of the operating shaft, crank arm, spring mechanism, and grounding knife assembly.

The Indoor AC Ground Switch with High Speed Earth Knife is mainly used to:

• Ground high-voltage electrical equipment during maintenance

• Protect technicians from accidental voltage appearance

• Limit risks caused by induced voltage and static electricity

• Provide grounding fault current paths in electrical systems

Unlike simple grounding connections, a dedicated grounding switch provides controlled mechanical operation and a defined grounding position inside switchgear systems.

How Does the High Speed Earth Knife Structure Work?

The operating performance of Indoor AC Ground Switch with High Speed Earth Knife depends heavily on the interaction between mechanical components.

The main structure includes:

• Bracket

• Grounding knife assembly

• Static contact

• Sensor

• Rotating shaft

• Rotating arm

• Compression spring

• Conductive sleeve

• Flexible connection

When the operating mechanism closes the grounding switch, the operating torque drives the main shaft and rotating arm toward the closing position. After passing the dead point of the compression spring, stored spring energy is released, allowing the grounding knife assembly to quickly move into the closed position.

The grounding knife maintains firm contact with the static contact through the disc spring structure, helping achieve stable electrical connection.

This mechanical design helps improve:

• Closing speed consistency

• Contact pressure stability

• Long-term operating reliability

Technical Specifications

The equipment is designed for indoor medium voltage applications where safe grounding operation is required.

Application Scenarios Where Fast Grounding Matters

Indoor Switchgear Maintenance Rooms

In distribution rooms, maintenance personnel need a reliable method to confirm equipment grounding before inspection. The grounding switch provides a dedicated grounding point after isolation procedures are completed.

Industrial Power Systems

Factories using medium voltage equipment may require regular maintenance on transformers, feeders, and switchgear. A stable grounding mechanism helps reduce risks during scheduled shutdowns.

Substations

Substations contain multiple high-voltage circuits where accidental voltage, induced current, or electromagnetic effects may create hazards. Grounding equipment helps establish a safer maintenance environment.

Parallel Transmission Line Environments

When one overhead line is de-energized while nearby lines remain energized, electrostatic and electromagnetic induction can create induced voltage. Grounding switches help discharge these effects and protect maintenance workers.

Quality Control Focused on Grounding Safety

Grounding switches are safety-related components in power systems, so manufacturing inspection needs to focus on both mechanical operation and electrical connection quality.

SanGao applies:

• ISO9001:2008 quality management system

• ISO14001 environmental management system

• OHSMS 18001 occupational health and safety management system

For Indoor AC Ground Switch with High Speed Earth Knife, quality control includes:

• Checking grounding knife movement accuracy

• Inspecting conductive connection points

• Verifying mechanical operation consistency

• Confirming finished product condition before shipment

These inspection steps help reduce installation adjustment problems after equipment arrives at the project site.

FAQ

1. What is the main purpose of this grounding equipment?

It provides a grounding path for high-voltage electrical equipment during maintenance and helps protect technicians from accidental voltage hazards.

2. Why is the high-speed earth knife design important?

The fast-action mechanism helps the grounding blade reach the closed position quickly and maintain reliable contact with the static contact.

3. What power systems are suitable for this equipment?

It is suitable for indoor 3-12kV three-phase AC 50(60)Hz power systems.

4. Can it be installed with existing switch cabinets?

Yes. Indoor AC Ground Switch with High Speed Earth Knife is designed to work together with various high-voltage switch cabinets, but installation compatibility should be confirmed according to the specific cabinet design.
