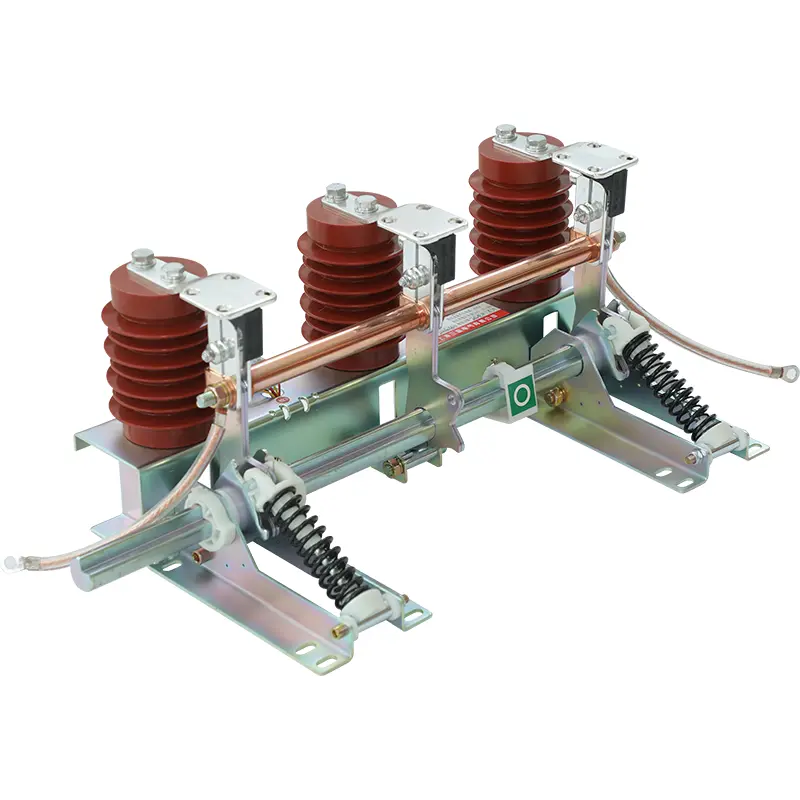

AC Three-phase Indoor High Speed Earthing Switch

For switchgear factories in pursuit of responsive grounding protection, AC Three-phase Indoor High Speed Earthing Switch from SanGao stands as an ideal matching component. Exclusively engineered for indoor high-voltage scenarios, it executes reliable grounding after circuit disconnection and lowers hidden hazards brought by residual electricity, inductive voltage and short-circuit malfunctions.

Fast-Action Grounding Protection for Medium Voltage Systems

In high-voltage maintenance work, the time required to establish a safe grounding condition is an important factor. A delayed or unstable grounding operation may increase risks for technicians and electrical equipment.

The high-speed closing mechanism allows the grounding blade to move quickly into the closed position, creating a reliable connection between the electrical circuit and the grounding system.

The AC Three-phase Indoor High Speed Earthing Switch is mainly used to:

• Ground isolated electrical equipment during maintenance

• Release residual electrical charge after disconnection

• Provide short-circuit grounding capability

• Improve operator protection inside switchgear systems

Compared with ordinary manual grounding structures, a fast-action design focuses on rapid mechanical response and stable contact pressure.

How Does the High-Speed Closing Mechanism Work?

The operating mechanism determines whether the AC Three-phase Indoor High Speed Earthing Switch can complete the closing action accurately and consistently.

The main operating process includes:

1. The operating mechanism receives a closing command.

2. The main shaft rotates and transfers mechanical force.

3. The grounding knife moves toward the fixed contact.

4. The spring mechanism releases stored energy to accelerate closing.

5. The conductive parts establish the grounding connection.

The fast closing structure helps the grounding blade overcome mechanical resistance and reach the required position quickly.

Main components include:

• Supporting frame

• Grounding knife assembly

• Static contact

• Rotating shaft

• Operating arm

• Compression spring

• Conductive connection components

The coordinated design of these parts ensures stable mechanical movement during repeated operation.

Electrical Protection Function During Maintenance

Even after a circuit breaker or isolator disconnects the power supply, electrical energy may remain in the system because of capacitance, induction, or nearby energized circuits.

The AC Three-phase Indoor High Speed Earthing Switch helps:

• Discharge remaining electrical energy

• Reduce induced voltage hazards

• Provide a low-impedance grounding path

• Improve maintenance safety procedures

In substations with parallel circuits, electromagnetic and electrostatic induction may generate unwanted voltage on disconnected equipment. A properly installed grounding system helps control these risks.

Technical Specifications

Why Choose SanGao for High Voltage Grounding Equipment?

Customers selecting grounding switches usually focus on three practical issues:

Stable Mechanical Operation

The fast closing mechanism is designed for repeated switching operations and consistent grounding performance.

Compatibility With Switchgear Systems

SanGao develops high-voltage components based on actual switchgear application requirements.

Complete Manufacturing Capability

From design and production to testing, SanGao manages key manufacturing processes internally, supporting better product consistency.

The company's product range includes grounding switches, disconnectors, load switches, vacuum circuit breakers, and other high-voltage electrical equipment.

FAQ

1. What is the main purpose of this equipment?

It is used to ground high-voltage electrical equipment after isolation and provide protection during maintenance operations.

2. Why does the fast closing mechanism matter?

A rapid closing action helps the grounding blade establish contact quickly and improves protection during abnormal electrical conditions.

3. Can it work with circuit breakers and isolating switches?

Yes. AC Three-phase Indoor High Speed Earthing Switch is commonly applied together with high-voltage switchgear components to create a safe isolation and grounding sequence.

4. What systems are suitable for this switch?

It is designed for indoor AC three-phase high-voltage systems, especially medium voltage switchgear applications.
