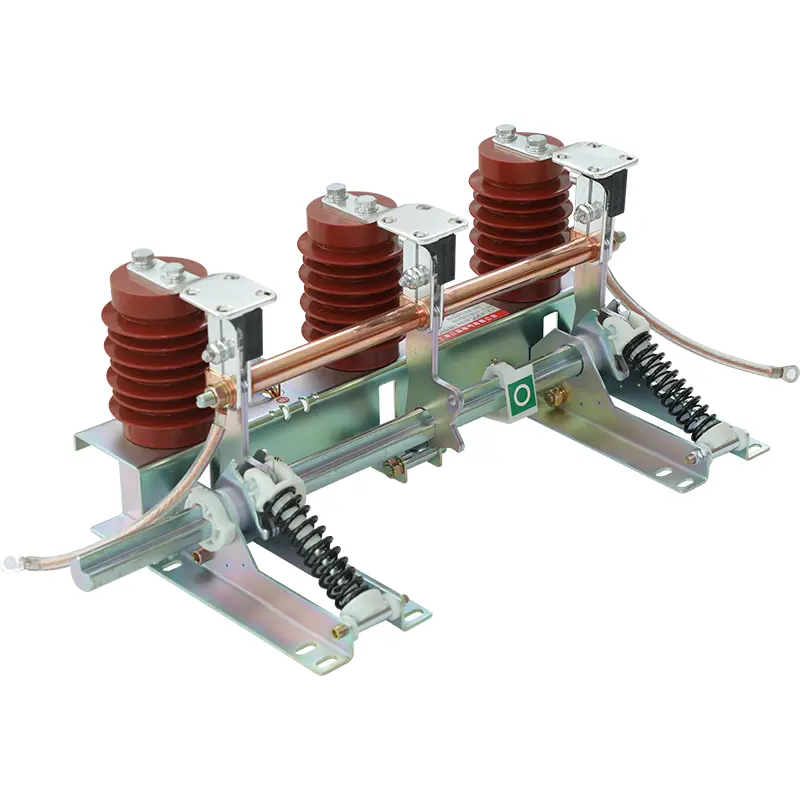

High Voltage Earthing Sswitch with Closing Resistor

Power grid operators and industrial electrical construction projects that demand precise grounding regulation widely select High Voltage Earthing Switch with Closing Resistor supplied by SanGao. This innovative unit merges standard grounding performance with resistance current limiting technology, lowering electrical stress generated from switching actions and optimizing protection matching within full high-voltage power systems.

How Does the Closing Resistor Improve System Protection?

When a grounding switch closes, the electrical connection may create a sudden current change depending on system conditions.

The closing resistor works by controlling the initial electrical impact during the closing process.

The High Voltage Earthing Switch with Closing Resistor operating principle includes:

1. The grounding mechanism receives a closing command.

2. The grounding contact begins the closing process.

3. The resistor participates in controlling the initial electrical response.

4. The grounding connection reaches the required operating condition.

This approach helps:

• Reduce switching stress

• Limit transient current impact

• Improve electrical system stability

• Protect sensitive high-voltage equipment

The resistor design provides an additional protection method compared with conventional grounding structures.

Designed for Substation and High Voltage Equipment Protection

High-voltage substations contain complex electrical connections where switching operations may influence multiple pieces of equipment.

This High Voltage Earthing Switch with Closing Resistor supports applications such as:

Transformer Substations

Transformers require controlled operating conditions because sudden electrical disturbances may affect insulation performance and service life.

High Voltage Switchgear Systems

Used together with circuit breakers and isolating switches, it helps complete safe grounding procedures during maintenance.

Power Transmission Facilities

Transmission systems may experience induced voltage and transient conditions. Controlled grounding helps improve operational safety.

Industrial Power Networks

Large industrial users with high-voltage equipment can benefit from improved grounding control during shutdown and inspection procedures.

Mechanical Structure Designed for Reliable Grounding Action

Although the closing resistor provides electrical control, mechanical reliability remains essential for grounding equipment.

The main structure includes:

• Grounding knife assembly

• Static contact

• Rotating shaft

• Operating arm

• Supporting frame

• Compression spring

• Conductive connection components

• Closing resistor assembly

During operation, the mechanism transfers torque through the operating shaft and drives the grounding knife into the correct position.

The design of High Voltage Earthing Switch with Closing Resistor focuses on:

Accurate Mechanical Movement

The operating components must maintain correct alignment during repeated opening and closing cycles.

Stable Grounding Contact

The grounding blade needs sufficient contact pressure to establish a reliable electrical path.

Coordinated Electrical Performance

The resistor and grounding system must work together to achieve controlled operation.

Technical Specifications

The detailed configuration can be selected according to different project requirements and switchgear designs.

Manufacturing Capability Focused on High Voltage Protection Equipment

Producing High Voltage Earthing Switch with Closing Resistor requires coordination between mechanical assembly and electrical design.

SanGao focuses on:

Component Manufacturing

Mechanical parts and conductive components are processed according to design requirements to maintain product consistency.

Electrical Structure Assembly

The resistor components and grounding system are assembled with attention to connection reliability and installation accuracy.

Product Performance Verification

Finished equipment is checked for mechanical operation and structural condition before shipment.

SanGao Electric is a professional manufacturer of high-voltage transmission and distribution equipment, integrating:

• Research and development

• Product design

• Production

• Testing

• Sales service

The company is located in Liushi, China's electrical manufacturing center, with:

• Factory area: 10 mu

• Building area: 10,000 square meters

• Employees: 120

• Middle and senior professional technicians: 20

• Registered capital: 81.68 million yuan

• Total assets: approximately 200 million yuan

FAQ

1. What is the purpose of the closing resistor?

The closing resistor helps control electrical impact during grounding operation and reduces transient effects in high-voltage systems.

2. Is this High Voltage Earthing Switch with Closing Resistor only used for maintenance grounding?

No. It is mainly used for grounding protection but also supports system safety requirements related to switching operations and electrical protection.

3. Which applications need a grounding switch with resistance control?

It is commonly considered for substations, high-voltage switchgear systems, and projects where transient electrical conditions require additional control.

4. How does it differ from a standard grounding switch?

The added resistor provides a controlled electrical response during closing operation, offering additional protection for specific high-voltage applications.
