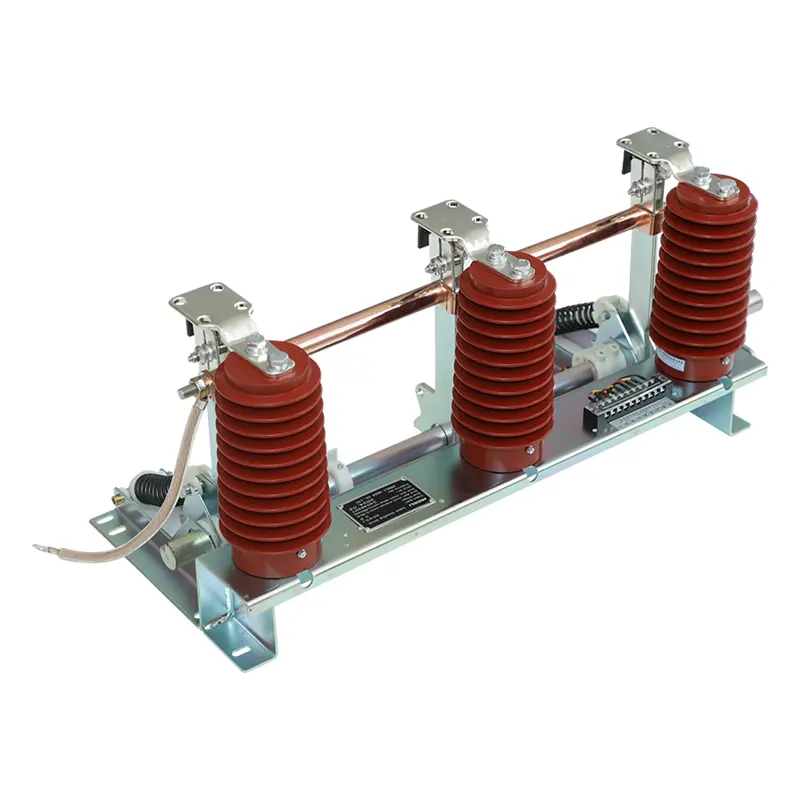

Air Insulated Grounding Disconnector Switch for Distribution Cabinet

Engineering teams, cabinet manufacturers and industrial power stations in need of secure grounding within confined cabinet spaces choose Air Insulated Grounding Disconnector Switch for Distribution Cabinet. Optimized for high-voltage cabinet matching, SanGao provides this dual-function device integrates isolation and grounding performance to clear residual voltage and create a fully safe working environment for on-site maintenance after power isolation.

Compact Grounding Solution Designed for Distribution Cabinets

Inside a distribution cabinet, space utilization and operational safety are both important considerations. Grounding equipment must provide reliable electrical protection while fitting into the limited internal structure of the cabinet.

This air insulated design uses surrounding air as the insulation medium, avoiding the need for additional insulating gases and simplifying equipment maintenance.

The Air Insulated Grounding Disconnector Switch for Distribution Cabinet's main functions include:

• Grounding disconnected electrical circuits

• Releasing residual charge from isolated conductors

• Supporting safe inspection and maintenance work

• Working together with switchgear isolation devices

For cabinet manufacturers, an integrated grounding solution helps optimize internal arrangement and simplifies system configuration.

Why Choose Air Insulation for Grounding Applications?

Different insulation technologies affect equipment maintenance, environmental impact, and long-term operating costs.

The Air Insulated Grounding Disconnector Switch for Distribution Cabinet provides several practical benefits:

Simple Maintenance Requirements

Because air is used as the insulation medium, there is no requirement for gas monitoring or gas replacement procedures.

Easy Condition Inspection

The open structure allows operators to visually inspect mechanical positions and contact conditions during maintenance.

Environmentally Friendly Operation

Compared with solutions using insulating gases, air insulation avoids concerns related to gas leakage management.

Suitable for Indoor Distribution Equipment

The structure is designed for indoor switchgear environments where reliable grounding and isolation are required.

Reliable Isolation and Grounding Function Inside Switchgear

After a circuit is disconnected, electrical energy may still remain because of capacitance, electromagnetic induction, or nearby energized equipment.

The grounding disconnector provides a controlled grounding connection to improve maintenance safety.

Typical operation:

1. The main circuit is isolated.

2. The grounding mechanism is operated.

3. The grounding contact connects with the grounding point.

4. Remaining charge is discharged safely.

The Air Insulated Grounding Disconnector Switch for Distribution Cabinet is especially useful in distribution cabinets where operators need a clear and reliable grounding status before maintenance.

Technical Specifications

Safe Packaging for Long-Distance Transportation

Distribution cabinet components require protection during transportation to avoid deformation or mechanical damage.

SanGao uses export-compliant wooden crates for shipment.

Packaging helps protect:

• Grounding mechanism structure

• Conductive components

• Mechanical connection parts

Customers can inspect Air Insulated Grounding Disconnector Switch for Distribution Cabinet's condition after receiving the equipment before cabinet assembly.

FAQ

1. What is the advantage of air insulation in this grounding equipment?

Air insulation simplifies maintenance because it does not require additional insulating gas management.

2. Can it be installed in existing distribution cabinets?

Installation depends on cabinet design and internal structure. Technical confirmation is recommended before replacement or integration.

3. What safety function does the grounding connection provide?

Air Insulated Grounding Disconnector Switch for Distribution Cabinet helps discharge residual electrical charge and provides a grounding path before maintenance operations.

4. Why is mechanical inspection important after installation?

Correct mechanical movement ensures the grounding blade reaches the proper position and maintains reliable contact.
