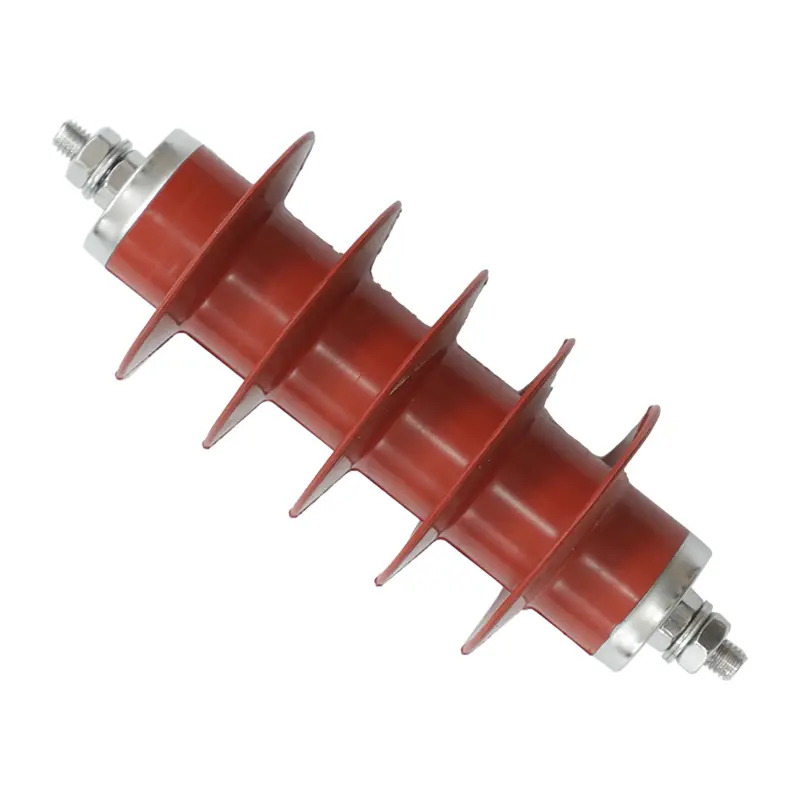

Zinc Oxide Lightning Arrester

Do you know how lightning arresters are used? Sangao is here to tell you that the advanced zinc oxide lightning arrester is installed above the overhead distribution transformer to divert the energy generated by overvoltage (especially lightning strikes) to the grounding terminal, protecting the system equipment from damage. Welcome everyone to inquire at any time!

Applications

Zinc oxide surge arresters are widely employed to shield power grids and electrical systems from damage caused by high voltage surges. Utilizing metal oxide semiconductor components, these arresters function as nonlinear resistors, effectively absorbing excess energy from voltage or current surges to maintain system stability and protect sensitive devices.

Structure and Materials

When an overvoltage occurs, the excess voltage and current are directed to the zinc oxide arrester. The metal oxide elements within efficiently discharge the surge energy, guiding the current through a low resistance path where it dissipates as heat. This mechanism ensures protection for electrical installations against the harmful effects of voltage spikes and transient overvoltages.

Technical Specifications

Rated Voltage: 6kV

Rated Discharge Current: 5kA / 10kA

Application: Suitable for overhead distribution lines

Compliance Standard: IEC 60099-4
