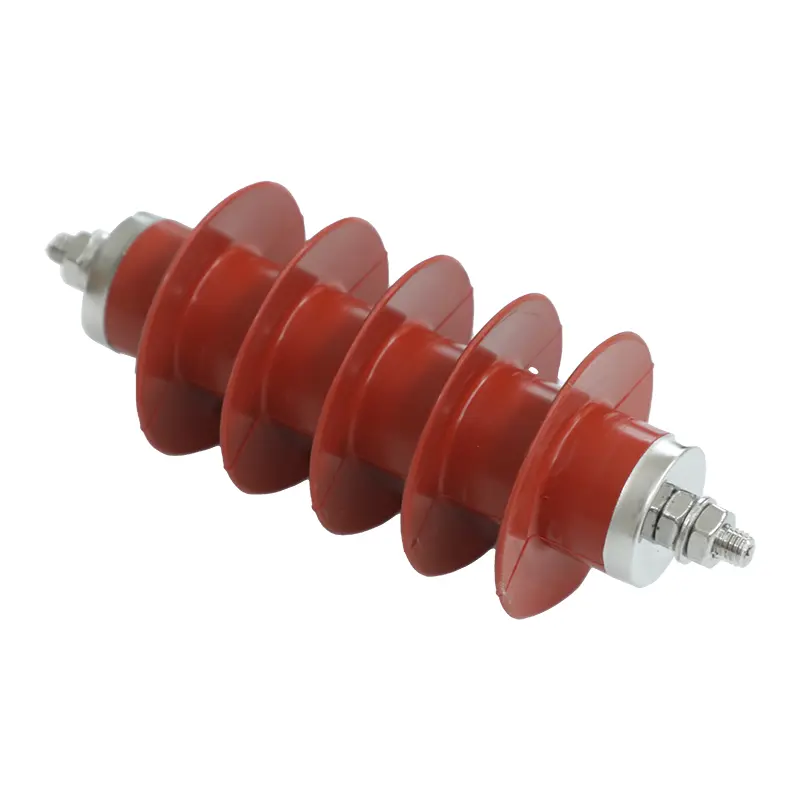

Electrical General Zinc Oxide Lightning Arrester

Our high-quality solution represents a major step forward for engineering firms seeking a reliable Electrical General Zinc Oxide Lightning Arrester Made in China. By using high-performance zinc oxide resistors as its core, this gapless device functions as a perfect electrical insulator under normal line voltages. The instant an overvoltage surge hits the line, the non-linear material changes states to conduct the transient energy safely to ground, protecting downstream hardware from severe insulation breakdown.

Technical Performance Specs & System Ratings

To ensure seamless structural integration across medium-voltage utility layouts, this Electrical General Zinc Oxide Lightning Arrester operates under these verified technical boundaries:

• System Rated Voltage Envelope: 1 kV to 36 kV distribution grids.

• Distribution Level Classifications: Light duty, ordinary duty, and heavy duty.

• Environmental Temperature Range: Minus 35°C to +40°C continuous outdoor use.

• Operating Elevation Limit: Standard configurations up to 1000 meters elevation.

• AC Power Grid Frequency: Handles alternating current lines up to 100Hz.

• Core Material Composition: Highly non-linear metal oxide varistor (MOV) blocks.

Non-Linear Voltammetric Response vs. Silicon Carbide

Older power networks relied on silicon carbide arresters paired with series spark gaps. Those legacy systems suffered from sluggish response times and physical spark gap degradation caused by repeated electrical arcing.

This Electrical General Zinc Oxide Lightning Arrester fundamentally alters protection characteristics by eliminating the physical spark gap entirely. The microcrystalline structure of our advanced zinc oxide varistors provides an incredibly sharp non-linear volt-ampere curve. At normal operating voltages, the leakage current is practically zero.

The microsecond the system detects an overvoltage surge, the resistance drops exponentially. This allows the unit to handle a massive current carrying capacity without thermal runaway, protecting the grid against sharp voltage sags and line-to-ground faults.

Where Is This Protection System Applied?

The universal structural design of this Electrical General Zinc Oxide Lightning Arrester makes it highly adaptable across multiple commercial infrastructure sectors:

• Standard Overhead Lines: Light duty versions are deployed in low lightning strike applications to protect long overhead spans from atmospheric discharges.

• Industrial Power Distribution: Ordinary duty models safeguard factory substations from high-frequency operational switching overvoltage caused by heavy motor starters.

• Cabinet Mounted Systems: Compact profiles allow seamless integration inside medium-voltage switchgear cabinets and pad-mounted enclosures where space is at a premium.

Industrial Packaging & Damage Prevention

Overseas transit demands robust defense against moisture ingress and physical impacts. Sangao packages bulk orders in export-compliant wooden crates lined with heavy shock-absorbing material. This packaging prevents physical distortion or internal alignment changes during long-distance maritime shipping, ensuring the equipment arrives at your project site in completely ready-to-install condition.

FAQ

How does the non-linear core return to an insulating state after a lightning strike?

The zinc oxide blocks behave like voltage-controlled molecular switches. As soon as the lightning surge discharges into the ground and the line voltage drops below the reference voltage threshold, the highly non-linear material properties terminate conduction instantly, resetting the insulation barrier.

What is the exact difference between light, ordinary, and heavy distribution levels for this Electrical General Zinc Oxide Lightning Arrester?

Light duty models are optimized for low lightning strike applications along rural lines. Ordinary duty models protect standard urban substations, while heavy duty variations feature enlarged varistor blocks to absorb the massive energy discharges common in high-risk zones.

Can this general-purpose protection device be integrated directly into indoor switchgear cabinets?

Yes. Its compact, gapless design emits no external ionized gas arcs during operation, making it perfectly safe for tight cabinet mounted installations where space is limited and arc clearances are tight.
