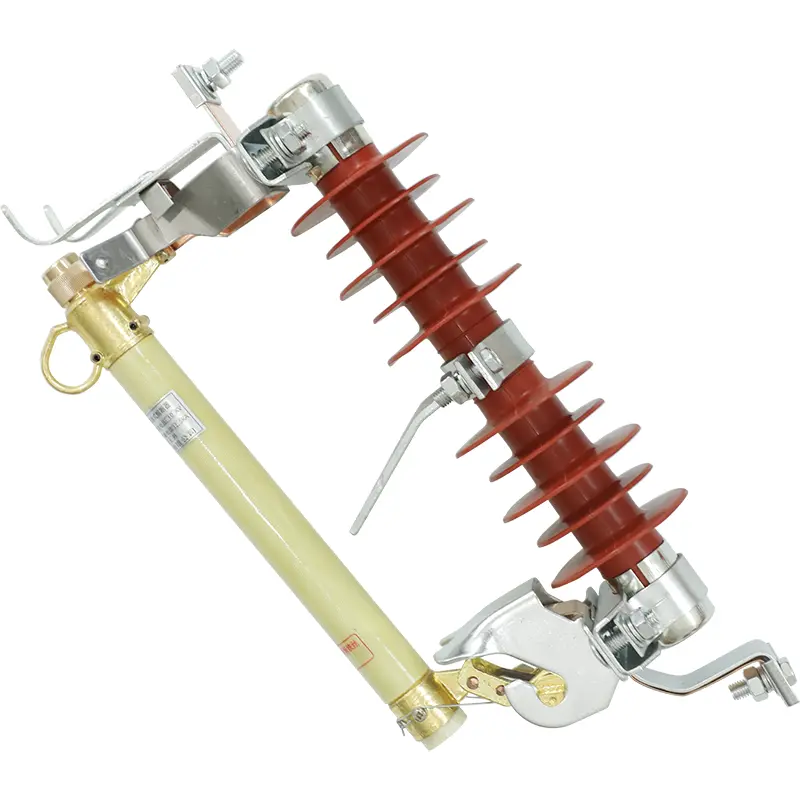

Pole Mounted High Voltage Composite Expulsion Dropout Fuse Cutout with Arc Distinguisher

The Sangao Pole Mounted High Voltage Composite Expulsion Dropout Fuse Cutout with Arc Distinguisher Made in China represents a significant design evolution for overhead power distribution networks. By utilizing a high-molecular composite outer jacket instead of traditional heavy porcelain, this lightweight yet structurally rigid cutout provides absolute immunity to structural cracking, mechanical impact damage, and tracking failures. The built-in arc distinguisher features a specialized bone-fiber interior liner that actively suffocates high-temperature electrical arcs within milliseconds of fuse element liquefaction, ensuring clean clearing without risking collateral damage to adjacent crossarms or phase lines. Wholesale buyers choose this advanced composite system to minimize line maintenance overhead and eliminate component errors caused by lingering high-voltage electrical arcs.

Dual-Action Expulsion & Arc Dissipation

Standard cutout switches rely purely on gravity and air gaps to clear medium-voltage faults, which can result in sustained arcing under high inductive loads. This specialized Pole Mounted High Voltage Composite Expulsion Dropout Fuse Cutout with Arc Distinguisher incorporates an engineered arc distinguisher that eliminates this physical limitation. The fuse holder tube houses the metallic fuse element inside a dual-walled chamber: a bone-fiber inner liner surrounded by a weather-proof epoxy fiberglass shell.

When an overload or short circuit triggers fault currents, the fuse element melts rapidly. The intense thermal energy instantly vaporizes the inner surface of the bone-fiber liner, releasing a high-pressure burst of de-ionizing gas. This gas blast forcefully expels the ionized air out of the bottom of the tube, extinguishing the electrical arc in milliseconds. Simultaneously, the operating mechanism releases the top latch, causing the entire fuse unit to flip down and fall from its normal working position, establishing a clear visual air break for utility crews.

Technical Performance Specifications

To ensure exact structural compatibility across overhead medium-voltage utility layouts, this Pole Mounted High Voltage Composite Expulsion Dropout Fuse Cutout with Arc Distinguisher operates strictly within these factory-verified environmental and electrical limits:

• Ambient Temperature Operational Envelope: -30°C to +40°C continuous outdoor exposure.

• Altimetric Rating Threshold: Up to 1000 meters elevation (custom mechanical adjustments are required for distances exceeding 1000 meters).

• AC Power Supply Frequency Range: Not less than 48Hz and not exceeding 52Hz networks.

• Seismic Intensity Tolerance Rating: Maximum structural seismic intensity shall not exceed 7 degrees.

• Maximum Permissible Wind Velocity: Shall not exceed 35 meters per second.

• Primary Application Environment: Overhead distribution systems, utility poles, and line-branch isolation taps.

Where Is This Specialized Cutout Deployed?

The robust composite construction and rapid arc-extinguishing capability make this protection device ideal for demanding industrial environments:

• Wind-Swept Overhead Feeders: Installed on exposed utility poles where wind speeds approach 35 meters per second, ensuring the mechanical latch remains locked until a fault occurs.

• Substation Riser Poles: Positioned at the critical junction where overhead distribution wires transition into underground cables, preventing traveling overcurrent faults from damaging sensitive sub-surface insulation.

• Seismically Active Distribution Loops: The shatter-proof composite polymer body easily absorbs mechanical vibrations and structural movements up to a 7-degree seismic intensity rating.

Global Shipping Standards

Overseas transit demands heavy-duty defense against high humidity, salt air, and physical handling stress. Sangao packages bulk orders of Pole Mounted High Voltage Composite Expulsion Dropout Fuse Cutout with Arc Distinguisher in export-compliant wooden crates lined with heavy shock-absorbing material. Each crate is hermetically sealed to prevent moisture from degrading the internal arc-extinguishing liners, ensuring every unit arrives at your project site in completely ready-to-install condition.

FAQ

How does the arc distinguisher function during low-current overload faults compared to high-current short circuits?

During high-current short circuits, the massive thermal energy creates a rapid, high-pressure gas blast that clears the arc instantly via expulsion. For low-current overloads, the inner bone-fiber liner relies on localized gas generation to cool and de-ionize the arc space, ensuring safe interruption even when the current flow is barely above the melting threshold.

Why is composite polymer housing preferred over porcelain in high-vibration utility environments?

Vitrified porcelain is brittle and prone to micro-fracturing under continuous physical stress or seismic events. Our composite polymer housing features high elasticity and structural resilience, allowing it to withstand physical impacts, human handling damage, and seismic forces up to 7 degrees without structural failure.

Does this Pole Mounted High Voltage Composite Expulsion Dropout Fuse Cutout with Arc Distinguisher require special tools for manual line crew operation?

No. The upper operating mechanism features standard pulling hooks that are fully compatible with conventional utility hot-sticks, allowing line workers to manually pull the fuse unit open for routine equipment maintenance or line isolation.
