Outdoor High Voltage Protection Switch Drop-out Fuse

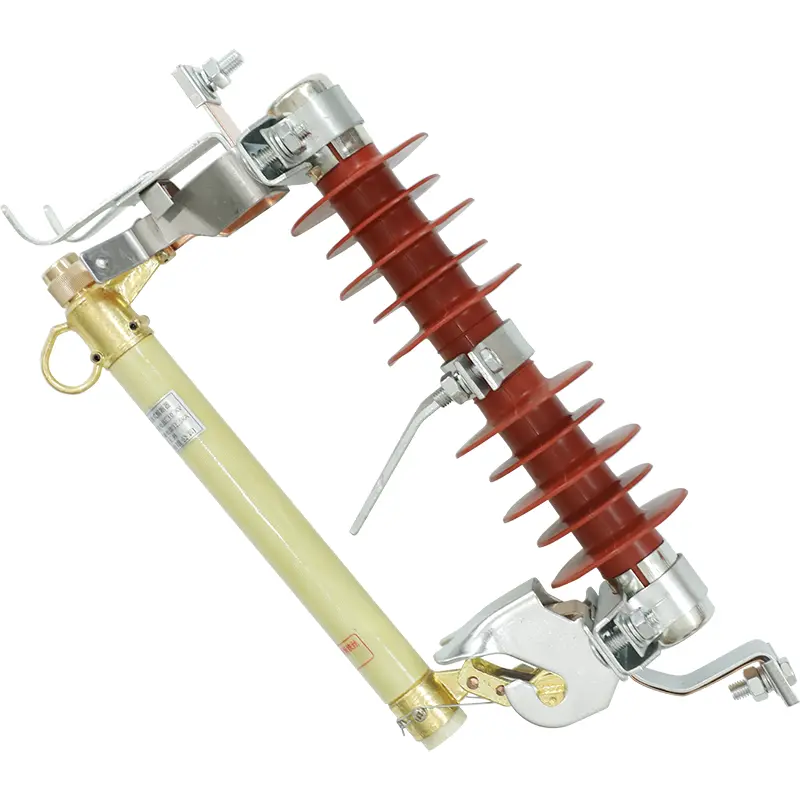

The Sangao Outdoor High Voltage Protection Switch Drop-out Fuse is a key protective piece engineered to safeguard power system equipment from damage and hazardous electrical conditions. Featuring a rugged ceramic insulator support structure, this drop-out circuit breaker provides an immediate, positive physical open circuit when a fault occurs. The fuse element is precision-calibrated to melt rapidly when an overload current flows through, cutting off the electrical current path in milliseconds and completely preventing downstream transformer failure.

Product Performance Parameters

The structural operating security of this Outdoor High Voltage Protection Switch Drop-out Fuse depends on strict adherence to these verified environmental criteria:

The Mechanics of Positive Drop-Off Isolation

A common failure point in low-grade protection switches is the tendency for the fuse tube to stick in place after the link melts, resulting in a dangerous continuous surface arc. The Sangao operating mechanism eliminates this vulnerability through a spring-loaded toggle arm assembly. The fuse element is connected under tension to the lower hinge mechanism.

The microsecond an overcurrent causes the metal strip to melt, the internal mechanical tension drops to zero. This change in force triggers the spring arm to release, causing the entire fuse unit to fall outward and downward under its own weight.

This drop-off action establishes a highly visible, physical air break that utility line crews can identify from the ground even during heavy rain or night storms, streamlining trouble-shooting and restoration times.

Core System Applications & Distribution Projects

This durable Outdoor High Voltage Protection Switch Drop-out Fuse serves as a primary defense line across a variety of power engineering projects:

• Pole-Mounted Transformer Protection: Deployed directly on the high-voltage side of distribution transformers to provide low-cost, high-reliability overcurrent protection.

• Rural Branch Line Sectors: Installed at key branch tap points on long overhead lines to isolate localized faults and prevent wide-scale regional blackouts.

• Industrial Plant Substation Feeds: Provides primary short-circuit protection on incoming overhead service lines feeding mining facilities and manufacturing plants.

Quality Control Testing

Sangao manufactures all outdoor switchgear under a strict ISO9001 quality framework. Every batch of Outdoor High Voltage Protection Switch Drop-out Fuse undergoes rigorous mechanical alignment checks, spring tension calibrations, and continuous current-carrying testing to ensure that the physical components align perfectly with the wiring terminals. This strict production quality ensures high action certainty and stable performance across decades of service.

FAQ

Why does the term 'drop off' describe the primary safety action of this protection switch?

"Drop off" refers to the mechanical action where the fuse tube unlatches and swings down out of its upper contact base. This physical movement is triggered automatically when the fuse element melts, visually confirming that the faulted circuit has been isolated.

Can this Outdoor High Voltage Protection Switch Drop-out Fuse handle extreme weather conditions like high winds and freezing cold?

Yes. The operating mechanism is rated to handle continuous freezing temperatures down to -30°C and high winds up to 35 meters per second, ensuring that external environmental pressures do not cause premature mechanical dropouts or frozen hinges.

What connection methods are available for the wiring terminals on this unit?

The wiring terminals are designed for universal utility connections, featuring heavy-duty bolt-tightened parallel groove clamps that accommodate standard aluminum conductor steel-reinforced (ACSR) distribution wires securely.
