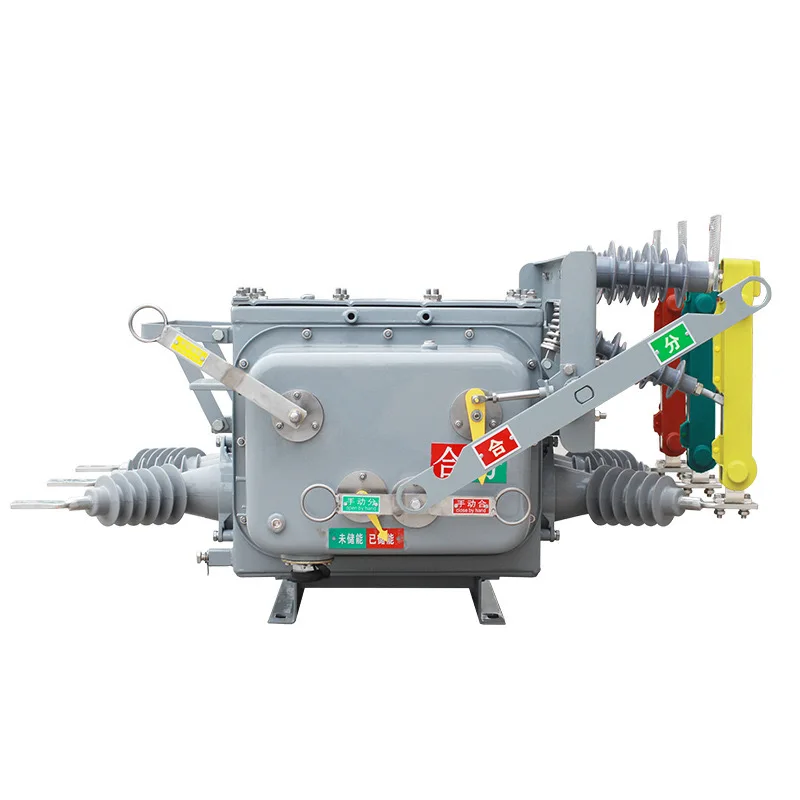

Three-Phase Circuit Breakers

If the SanGao durable Three Phase Circuit Breakers block is set to external control mode, a control input will be displayed in the block icon. If Three Phase Circuit Breakers is set to internal control mode, specify the switching time in the block's dialog box. Three separate circuit breakers are controlled by the same signal.

The three-phase circuit breaker block uses three circuit breaker blocks connected between the input and output of the block. You can use this block in series with the three-phase components to be switched. The arc extinguishing process of a three-phase block is the same as that of a circuit breaker block. The model includes Rs series Cs buffer circuits. They can choose to connect to three separate circuit breakers. If a three-phase circuit breaker is connected in series with an inductive circuit, open circuit, or current source, a buffer must be used.

Three Phase Circuit Breakers are critical components in power distribution infrastructure, particularly in commercial and industrial environments. Unlike single-phase circuit breakers used in residential areas, these circuit breakers are designed to handle higher voltage and electrical loads. Choosing a suitable three-phase circuit breaker requires a thorough understanding of its specifications and operational requirements.

This article will explore the key specifications for selecting Three Phase Circuit Breakers, the types of three-phase circuit breakers, and the importance of trip characteristics and protection ratings. Understanding these aspects is crucial for ensuring the safety, efficiency, and sustainability of electrical systems in the face of constantly evolving technological advancements.

A three-phase circuit breaker is a three pole magnetic control circuit device that has the following functions:

Isolation switch: Three Phase Circuit Breakers provide a method of isolating circuit conductors from their power supply. One toggle handle can operate all three levers. When used in this way, it is also known as a safety or isolation switch.

Circuit protector: provides reliable circuit overload protection. This structure consists of three single poles, each with a rated current of 5A, assembled with an internal mechanical interlocking device that simultaneously activates all units and opens each line conductor. When overloaded, a single toggle handle will move to the closed position and cannot be forcibly closed until the overload is relieved. It is said that this is' free travel '.

Manual control switch: Its special delay series tripping characteristic and high breaking current capacity make it suitable as a direct motor on/off control switch when used within the rated value. It can also be referred to as a motor circuit switch.
