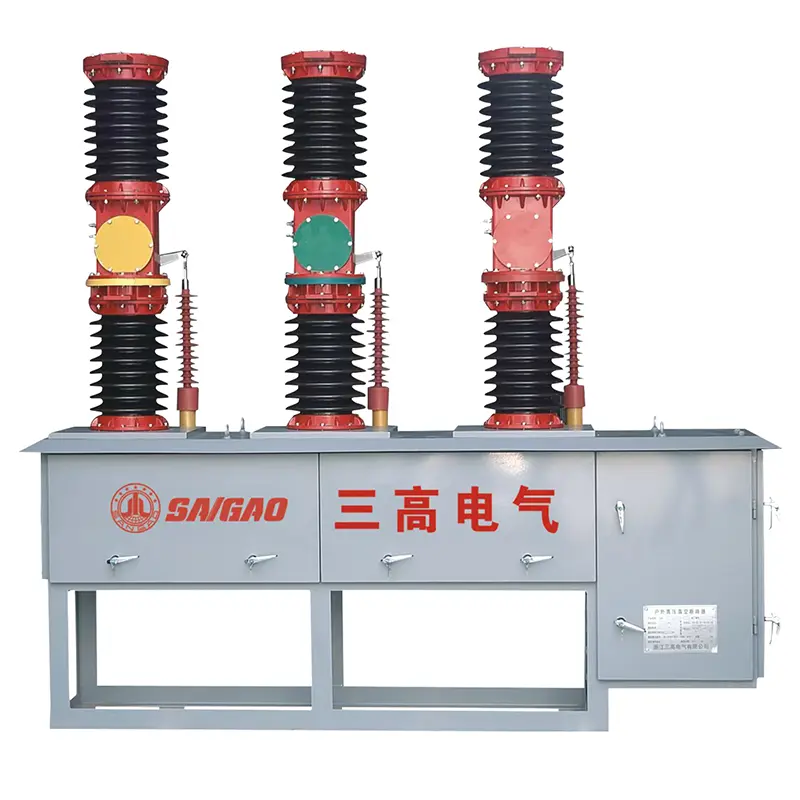

40.5KV Switch Recloser

SanGao High Quality 40.5KV Switch Recloser is a three phase AC 50Hz/60Hz outdoor high voltage switchgear. Mainly used for outdoor distribution systems of 10-35kV in rural and urban power grids. Combined with load current, overload current, and short circuit current, it can also be used in other similar places.

Structural characteristics

The 40.5KV Switch Recloser adopts a three phase column structure, which has the characteristics of stable and reliable breaking performance, no risk of combustion and explosion, maintenance free, small size, light weight, and long service life.

The three phase pillar and current transformer are made of outdoor epoxy resin solid insulation and wrapped with silicone gel; They are resistant to high temperature, low temperature, ultraviolet radiation, and aging.

Features:

1.The 40.5KV Switch Recloser can be stored, made, and broken through a motor, and can be operated through a handle.

2. The breaking short-circuit current can reach up to 25kA.

3. Micro motor spring mechanism (approximately 30W).

4. Installation method: Two installation methods are used.

5. Sealing performance: Reliable sealing technology is adopted.

6. Incoming and outgoing line methods: Ceramic sleeves are used to ensure sufficient insulation distance.

7. Safe operation: equipped with explosion-proof devices.

Work environment

Environmental temperature: -40 ℃ to 85 ℃

Daily temperature difference: 25 ℃

Altitude: ≤ 2000m

Wind speed not exceeding 35m/s

Non strong corrosive gas, suitable for moderate environments (such as acid, alkali, suffocation, etc.)

Pollution level: IV

Charging temperature: -40 ℃ to 85 ℃

Warn

End users must ensure that there is no power supply to the main contacts of the relay

The interval between each C-O operation is less than 1 second

If switching frequently, please follow: rated working cycle O-0.3s-C O-3s-C O (minimum 3s, maximum 180s)
