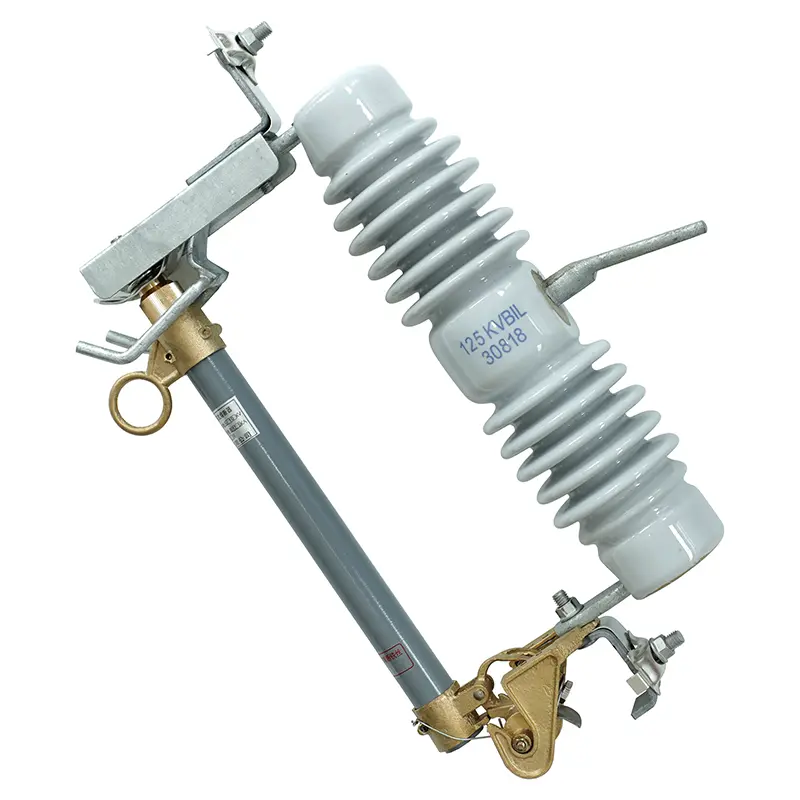

Porcelain Fuse Cut Out for Distribution Protection

SanGao's Made-in-China Porcelain Fuse Cut Out for Distribution Protection is a rugged outdoor electrical component tailored for urban and rural power line protection. Adopting high-grade vitrified porcelain insulator body, the product features a mechanical dropout structure. When the internal fuse link melts under fault current, the fuse tube will automatically drop down, forming a clear visual fault indication for line maintenance personnel to quickly troubleshoot. It is the preferred wholesale product for industrial infrastructure, railway power lines and distribution substation projects.

Technical Specifications & Operating Thresholds

The standardized mechanical and electrical parameters ensure seamless integration with various overhead power distribution systems, with specific indicators as follows:

• System Voltage Compatibility: Applicable to 11KV to 38KV overhead distribution systems

• Ambient Thermal Tolerance: Continuous stable operation at -40°C to +40°C outdoor environment

• Altimetric Threshold: Standard rated altitude up to 1000 meters; customized solutions available for high-altitude installation scenarios

• Grid Frequency Adaptability: Suitable for AC power supply systems with frequency up to 100Hz

• Breaking Capacity: Capable of bearing tens of thousands of amperes of high short-circuit current

• Mechanical Load Limit: Operate strictly within the rated design load range

Technical Focus: Why Vitrified Porcelain Outperforms Composites？

In coastal regions and heavy industrial zones, airborne salt spray and chemical pollutants cause tracking and erosion on standard composite cutouts, leading to premature dielectric breakdown. SanGao solves this by utilizing wet-process electrical porcelain with a smooth, glazed finish. This Porcelain Fuse Cut Out for Distribution Protection material completely rejects moisture absorption, resists ultraviolet radiation, and features deep aerodynamic sheds that naturally wash clean during rainstorms, preventing leakage currents.

Furthermore, while competitor models often feature thin copper-clad steel components that pit and corrode, SanGao uses solid, thick, silver-plated copper casting contacts. This architectural choice lowers electrical contact resistance, minimizes thermal losses under full-rated continuous loads, and ensures the mechanical hinge toggles open smoothly when the fuse element clears a fault.

Why Choose SanGao?

Different from ordinary composite cutouts that are prone to aging and failure under long-term ultraviolet radiation and environmental pollution, our all-porcelain structure completely avoids UV deterioration, chemical corrosion and tracking failure risks.

Most suppliers cut costs by thinning copper contact castings, while SanGao adopts high-conductivity silver-plated copper contacts. This optimized structure effectively reduces contact resistance, avoids thermal runaway under full-load operation, and ensures the mechanical hinge can pop open stably every time the fuse link melts.

Application Scenarios

This Porcelain Fuse Cut Out for Distribution Protection is widely used in global power engineering scenarios with harsh operating conditions:

• Urban Grid Modernization: Installed on pole-mounted distribution transformers to realize isolated protection of residential power supply areas

• Wind & Hydropower Projects: Used for overcurrent protection of long-distance overhead connecting lines in remote new energy stations

• Petrochemical & Mining Industry: Protect precision industrial equipment from voltage sag and line-to-ground short circuit faults

Product Packaging

To adapt to long-distance overseas transportation, all products including Porcelain Fuse Cut Out for Distribution Protection are packed in export-standard wooden crates with high-density shock-absorbing lining materials. The professional packaging effectively prevents porcelain insulators from micro-cracks and physical damage during sea and land transportation, ensuring intact product delivery.

FAQ

1. How does the product perform in freezing rain weather?

The mechanical hinge adopts a downward drainage structure, which will not accumulate ice and cause jamming. Even at -35°C, the gravity dropout mechanism can respond instantly and complete circuit isolation once the fuse link melts.

2. What causes premature arcing, and how does your design solve it?

Premature flashover arcing is mainly caused by surface pollution accumulation on insulators. Our product is designed with optimized deep creepage distance for porcelain sheds, which cuts off the tracking path and effectively prevents flashover faults in coastal, dusty and high-pollution areas.

3. Can it adapt to high-frequency surge interference of frequency conversion equipment?

Yes. The Porcelain Fuse Cut Out for Distribution Protection is a pure mechanical physical protection device, not affected by electronic signal interference. Its fault clearing performance remains stable under 100Hz grid frequency and high-frequency harmonic distortion conditions.
