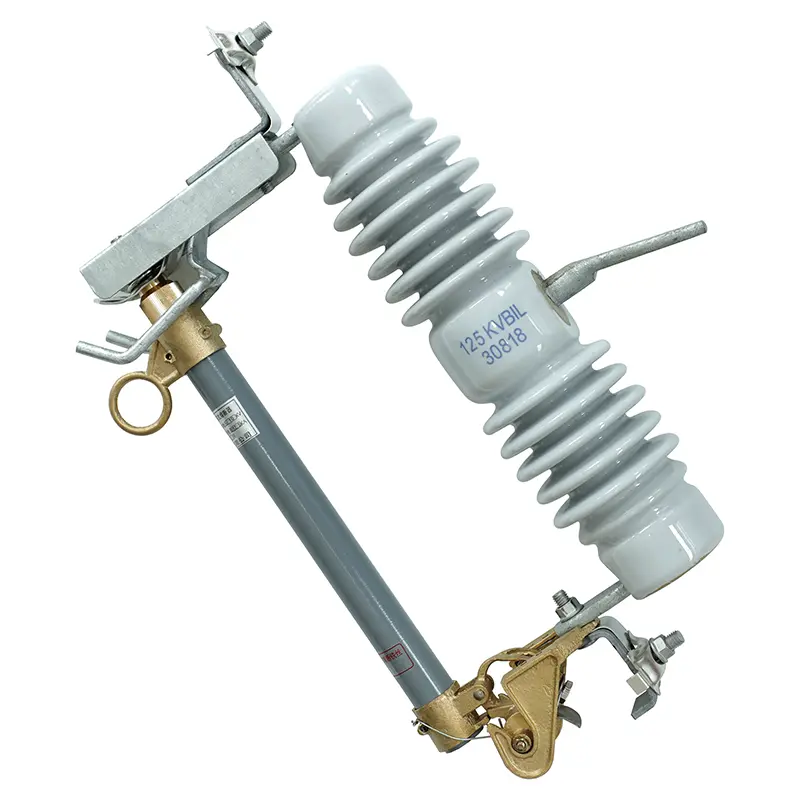

High-Voltage Drop-out Fuse for Outdoor Electrical Systems

The SanGao High-Voltage Drop-out Fuse for Outdoor Electrical Systems Made in China provides essential overcurrent protection for modern distribution grids. Engineered through close technical exchanges with top electrical research institutes, this wholesale product utilizes an advanced mechanical dropout design. When a fault occurs, the internal molten metal strip liquefies instantly, extinguishing the arc within milliseconds and dropping the fuse tube open to prevent component errors and extended system outages.

Engineering Parameters & Limits

Review the critical operating specifications for the High-Voltage Drop-out Fuse for Outdoor Electrical Systems:

• Operating Voltage Envelope: 11KV to 38KV overhead lines.

• Ambient Temperature Boundaries: Suitable for environments ranging from -40°C to +40°C.

• Elevation Capabilities: 1000 meters maximum (factory adjustments provided for high-altitude locations).

• Power Supply Frequency: Designed for AC networks up to 100Hz.

• Breaking Interruption Capacity: Tens of thousands of amperes of peak short-circuit current.

• Load Parameters: Mechanical load must remain within designated rated values.

Mechanical Focus: Eliminating Nuisance Dropouts from High Winds

Many outdoor fuses suffer from wind-induced dropouts, where strong crosswinds vibrate the fuse tube out of its top latch, causing unexpected power outages. SanGao eliminates this design flaw by incorporating an innovative, wind-proof mechanical latching mechanism.

The upper contact assembly features a reinforced stainless steel leaf spring that holds the fuse link tightly in place during heavy storms, yet releases smoothly when the internal element melts. This provides high action certainty and eliminates nuisance outages.

Where Does It Excel?

This durable High-Voltage Drop-out Fuse for Outdoor Electrical Systems is field-tested across challenging industrial settings:

• Agricultural Irrigation Networks: Installed along rural power lines to protect distribution transformers driving high-horsepower water pumps.

• Wind Power Generation: Provides reliable overcurrent protection on the medium-voltage side of wind turbine step-up transformers.

• Heavy Industrial Sub-Stations: Deployed as a primary backup protection layer for incoming overhead power lines at mining facilities and petrochemical plants.

Advanced ERP Manufacturing and Quality Assurance

Every single fuse cutout is manufactured under a modern ERP management system and fully complies with ISO14001 environmental and OHSMS 18001 occupational health standards. From the raw copper alloy casting to the final assembly alignment, our production processes undergo strict internal inspections to guarantee long-term field reliability.

Field Application FAQ

What specific metal alloy is used in the fuse link for this High-Voltage Drop-out Fuse for Outdoor Electrical Systems?

We use precision-calibrated silver or copper-silver alloy strips. These specific metals ensure highly predictable melting characteristics and resist oxidation over years of exposure to outdoor air.

Can this outdoor fuse be operated safely under full-load conditions using a portable load-break tool?

Yes. The top contact structure is equipped with standard load-break hooks. This allows line crews using an external load-break tool to safely manually open the fuse under full-load conditions for routine equipment maintenance.

How does extreme cold down to -35°C affect the mechanical operation of the dropout arm?

The pivot hinges are treated with a specialized low-temperature silicone lubricant that resists freezing and thickening. This ensures the mechanical arm drops completely free to isolate faults even in sub-zero winter weather.
