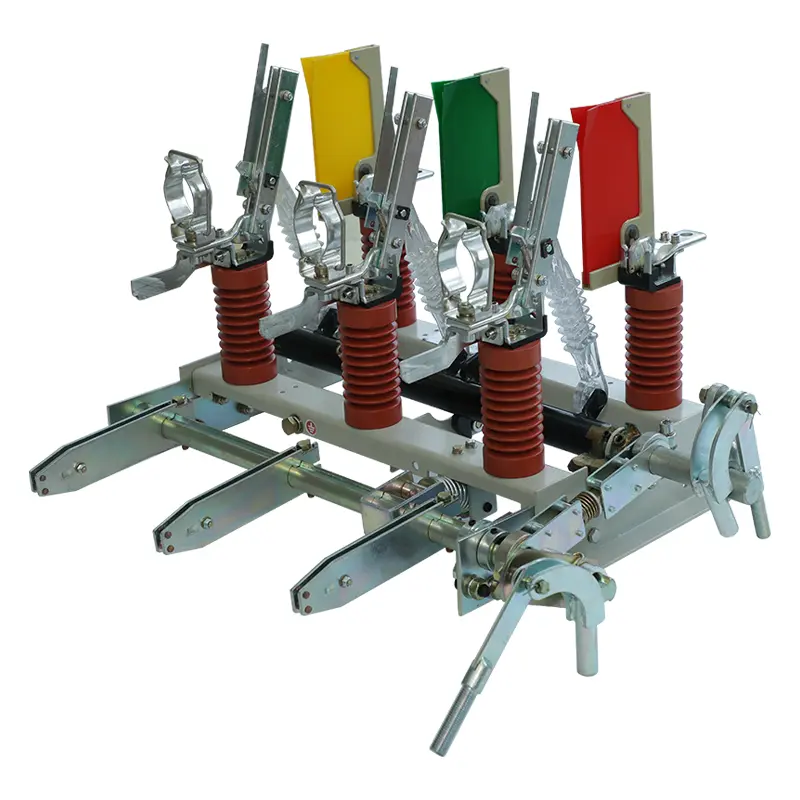

Indoor High Voltage Air Load Break Switch with Impact Fuse

SanGao’s Indoor High Voltage Air Load Break Switch with Impact Fuse is widely deployed in industrial power grids, renewable energy stations and power distribution projects that call for stable switching performance and fuse overcurrent protection. Developed by our dedicated high-voltage equipment manufacturing team, the unit unifies load switching, visible isolation and impact fuse protection, ensuring secure operation within indoor medium-voltage power systems.

What Is the Purpose of This Switching Equipment?

Medium voltage distribution systems need equipment that can control power flow while protecting electrical assets from abnormal conditions. This Indoor High Voltage Air Load Break Switch with Impact Fuse combines load interruption capability with fuse protection, allowing operators to manage circuits more safely during normal operation and maintenance.

Unlike traditional solutions that may rely on SF₆ gas or oil-based insulation methods, the equipment uses air as the insulation and arc extinguishing medium. This structure avoids gas leakage concerns and simplifies long-term maintenance requirements.

The main functions include:

• Connecting and disconnecting load currents

• Providing clear circuit isolation during maintenance

• Supporting equipment protection through fuse integration

• Improving operational safety in medium voltage networks

For power contractors and system integrators, this design provides a practical balance between protection performance, environmental requirements, and maintenance convenience.

Air Insulation Design Reduces Maintenance Challenges

One of the major concerns for electrical operators is long-term maintenance caused by insulation media degradation or leakage risks.

The air insulation structure provides several practical advantages:

Environment-Friendly Operation

The equipment does not use SF₆ gas or oil, reducing environmental concerns associated with alternative insulation technologies.

Easier Maintenance Management

Because the insulation medium is natural air, customers do not need additional gas handling procedures or specialized leakage monitoring equipment.

Stable Arc Extinguishing Performance

The design uses air-based arc extinguishing technology to support reliable switching operations under rated conditions.

This makes the Indoor High Voltage Air Load Break Switch with Impact Fuse suitable for organizations looking for simpler operation processes and lower maintenance workload.

Key Features Designed for Real Project Requirements

SanGao focuses on solving common problems faced by power engineers, including limited installation space, frequent switching requirements, and the need for safer maintenance procedures.

Main features include:

Reliable Load Switching

The equipment is designed to connect and disconnect load currents in medium voltage distribution systems, helping operators manage power circuits efficiently.

Fuse Protection Function

The integrated impact fuse structure provides additional protection for connected electrical equipment, helping reduce damage risks caused by abnormal current conditions.

Mechanical Interlocking Protection

A mechanical interlocking device helps prevent incorrect operation sequences, reducing the possibility of operator mistakes.

Clear Operating Status

Visible ON/OFF indication allows operators to quickly confirm equipment condition before performing maintenance work.

Technical Specifications

The Indoor High Voltage Air Load Break Switch with Impact Fuse is designed for medium voltage applications requiring safe switching, isolation, and protection functions.

Why Choose SanGao for Medium Voltage Switching Solutions?

When purchasing high-voltage equipment, customers usually evaluate more than product specifications. They also consider supplier experience, technical support, and long-term service capability.

SanGao provides:

Professional High Voltage Manufacturing

SanGao focuses on high-voltage electrical products, including load switches, vacuum circuit breakers, disconnectors, grounding switches, and related protection equipment.

Integrated Production Capability

From product development to manufacturing and testing, SanGao manages key production processes internally, helping maintain product consistency.

Technical Cooperation Experience

The company maintains technical exchanges with institutions including Xi'an Senyuan, Beijing Electrical Research Institute, and Xi'an High Voltage Electrical Research Institute to improve product development capability.

FAQ

1. Why does this equipment use air instead of SF₆ gas?

Air insulation avoids SF₆ gas leakage risks and reduces environmental concerns while simplifying maintenance requirements.

2. Can this equipment switch load current?

Yes. It is designed to connect and disconnect load currents in medium voltage distribution systems.

3. What voltage range is suitable for this product?

The Indoor High Voltage Air Load Break Switch with Impact Fuse is designed for 12kV-24kV medium voltage applications.

4. Is the fuse function integrated into the switching structure?

Yes. The impact fuse design provides additional protection for connected electrical equipment.
