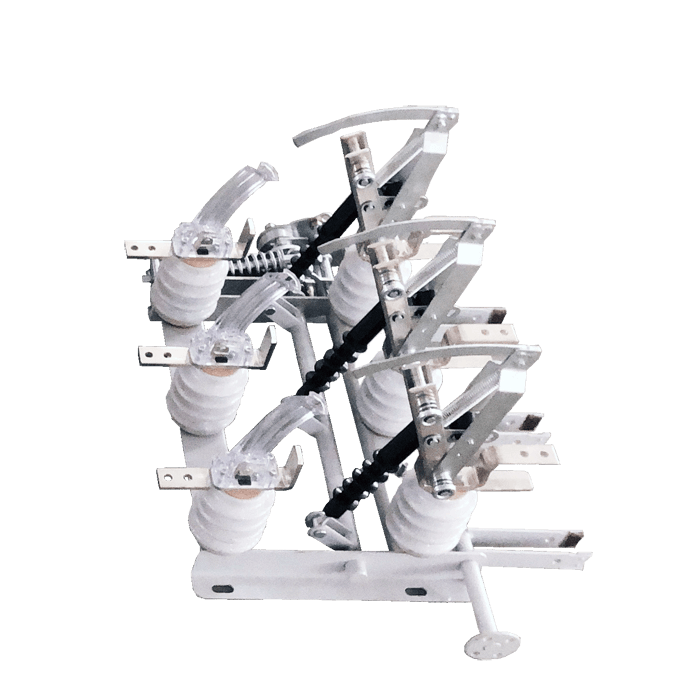

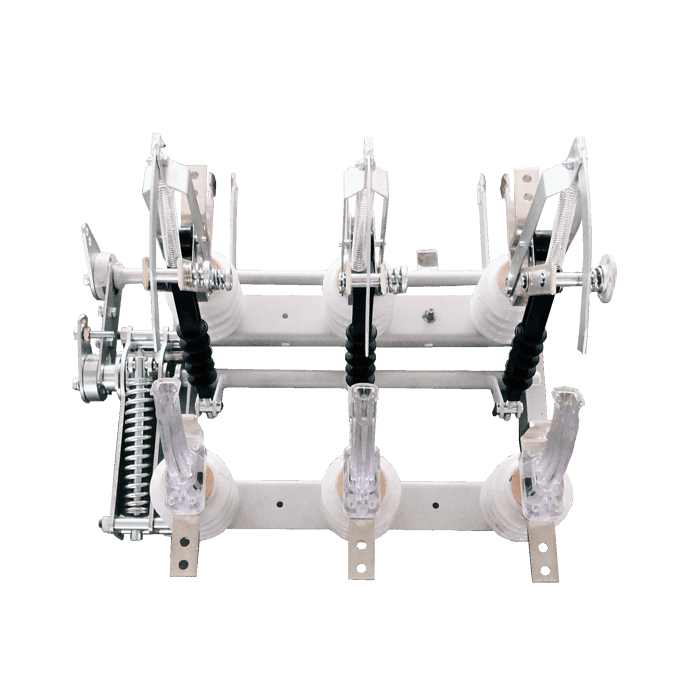

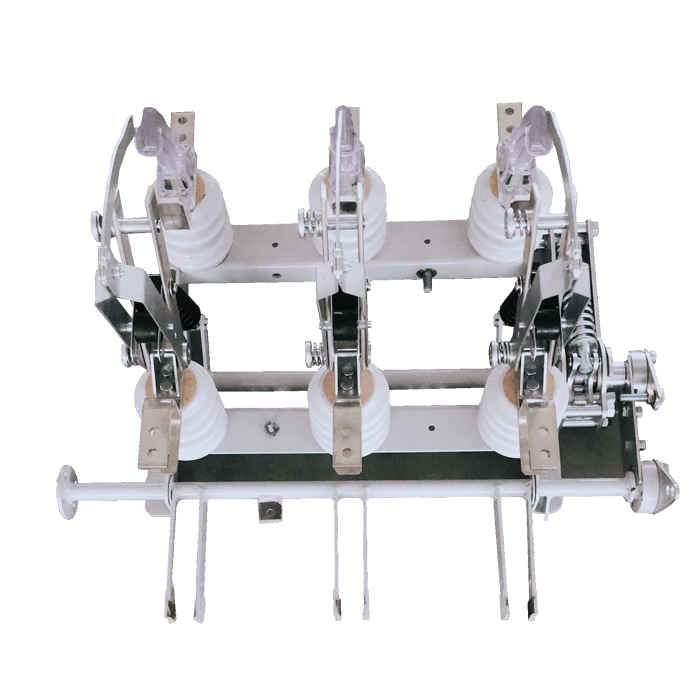

AC Indoor 10KV Load Break Grounding Switch with Fuse Clip

AC Indoor 10KV Load Break Grounding Switch with Fuse Clip fits perfectly into industrial substations, integrated switchgear and power distribution projects with extra protection demands. Built upon SanGao’s mature high-voltage engineering technologies, this apparatus unifies load break structure, grounding circuit and fuse clip mounting space, creating a user-friendly solution to boost operational safety and lower maintenance workloads in 10kV indoor power environments.

Integrated Switching and Protection for 10KV AC Networks

In medium voltage AC distribution systems, customers often need more than simple circuit disconnection. Equipment must support normal switching operations while protecting transformers, feeders, and other connected components from abnormal current conditions.

AC Indoor 10KV Load Break Grounding Switch with Fuse Clip integrates load switching, grounding, and fuse installation functions into one structure, reducing the need for separate protection components and helping engineers simplify switchgear design.

Main functions include:

• Switching AC load current under rated conditions

• Providing grounding protection during maintenance

• Supporting fuse installation for circuit protection

• Creating a clear operating sequence for electrical personnel

For industrial power users, combining these functions in one unit can improve equipment coordination and reduce installation complexity.

Fuse Clip Design Provides Additional Equipment Protection

Electrical distribution systems may experience abnormal conditions such as overload or short-circuit faults. A properly matched fuse protection system helps limit damage to connected electrical equipment.

The integrated fuse clip structure provides:

Convenient Fuse Installation

The design allows protective fuse components to be installed directly within the switching system, helping reduce additional mounting requirements.

Faster Maintenance Replacement

A practical fuse arrangement makes inspection and replacement procedures easier for maintenance teams.

Improved System Protection Coordination

The fuse function works together with the switching structure to provide a more complete protection solution for medium voltage applications.

For customers managing industrial power systems, this AC Indoor 10KV Load Break Grounding Switch with Fuse Clip helps balance operational safety with maintenance efficiency.

Grounding Function Supports Safer Maintenance Procedures

Maintenance safety is a key concern in 10KV electrical systems. Before technicians inspect equipment, the circuit must be isolated and properly grounded.

The grounding structure helps:

Establish a Safer Working Condition

After circuit isolation, the grounding function provides additional protection during maintenance activities.

Improve Operation Standardization

A dedicated grounding mechanism helps operators follow clearer switching procedures.

Reduce Operation Risks

The combination of isolation and grounding functions helps reduce the possibility of incorrect maintenance preparation.

Installation and Maintenance Guidance

Correct operation and regular inspection help maintain long-term equipment performance.

Recommended maintenance points include:

• Checking fuse clip condition during inspection

• Confirming grounding mechanism operation

• Inspecting contact surfaces and insulation parts

• Verifying mechanical switching movement

SanGao provides AC Indoor 10KV Load Break Grounding Switch with Fuse Clip installation manuals and technical support to help customers complete commissioning and operation correctly.

FAQ

1. What is the purpose of the fuse clip structure?

The fuse clip allows protective fuse installation within the switching system, helping protect connected electrical equipment from abnormal current conditions.

2. Can the grounding function be used during maintenance?

Yes. After proper circuit isolation, the grounding function supports safer maintenance procedures.

3. What are the main electrical parameters of this equipment?

The rated voltage is 10KV, the rated current is 630A, and the AC Indoor 10KV Load Break Grounding Switch with Fuse Clip breaking capacity is 20kA based on the model suffix.
