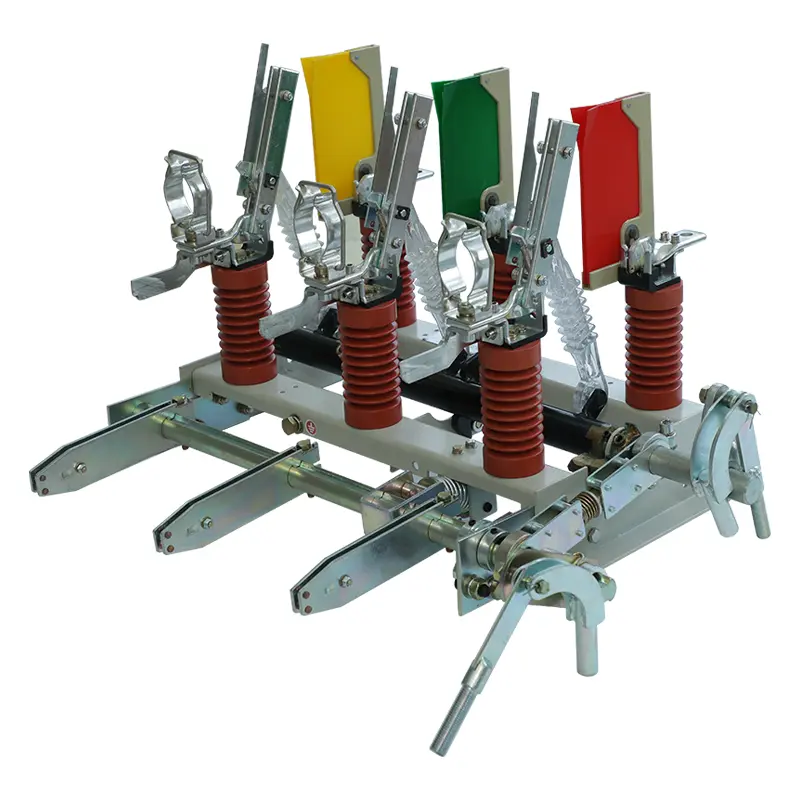

High Voltage Air Load Break Isolated Fused Disconnector Switch

Utility operators, factory electrical departments and renewable energy developers frequently adopt SanGao High Voltage Air Load Break Isolated Fused Disconnector Switch for projects demanding clear visible isolation and steady switching performance. This all-functional switch unifies load interruption, circuit disconnection and fuse protection. Every unit goes through independent research, precision fabrication and multi-round performance verification under SanGao’s complete industrial chain to adapt to complex medium-voltage operating conditions.

Integrated Design for Safer Medium Voltage Circuit Control

In medium voltage power systems, operators often need several functions at the same installation point: switching under load conditions, circuit isolation for maintenance, and protection against abnormal current.

This High Voltage Air Load Break Isolated Fused Disconnector Switch combines these functions into one compact structure, reducing the need for multiple independent components and helping engineers simplify system configuration.

The main functions include:

• Switching and controlling load currents

• Creating a clear isolation point during maintenance

• Supporting protection through fuse integration

• Improving operation safety through mechanical design

For distribution operators and industrial users, an integrated switching solution can make equipment management easier while reducing installation space requirements.

Engineering Features Designed Around Customer Needs

SanGao develops medium voltage switching equipment according to real project conditions, including frequent operation requirements, limited installation areas, and strict safety procedures.

Key features include:

Load Switching Capability

The High Voltage Air Load Break Isolated Fused Disconnector Switch allows operators to connect and disconnect load currents within designed operating conditions, supporting daily power system management.

Isolation Function

The disconnecting structure provides visible circuit separation, helping maintenance teams confirm equipment status before service operations.

Fuse Protection Integration

The fused design provides additional protection for connected electrical equipment by helping limit damage caused by abnormal current situations.

Mechanical Safety Protection

Mechanical interlocking components help reduce incorrect operation and improve the safety of switching procedures.

Technical Specifications

Installation Support Helps Projects Run Smoothly

Correct installation and operation procedures are important for medium voltage equipment performance.

SanGao provides High Voltage Air Load Break Isolated Fused Disconnector Switch technical support including:

• Installation manuals

• Operating instructions

• Product application guidance

• Engineering communication

For contractors and system integrators, professional technical information helps shorten installation preparation time and reduce commissioning problems.

FAQ

1. What functions are combined in this equipment?

It combines load switching, circuit isolation, and fuse protection functions for medium voltage applications.

2. Does this equipment use SF₆ gas?

No. The insulation and arc extinguishing medium is air, which avoids SF₆ gas-related maintenance requirements.

3. What voltage range is suitable for this equipment?

It is designed for 12kV-24kV medium voltage distribution systems.

4. Can it be used in renewable energy projects?

Yes. High Voltage Air Load Break Isolated Fused Disconnector Switch is suitable for applications such as wind power plants, solar power systems, and other medium voltage energy projects.
