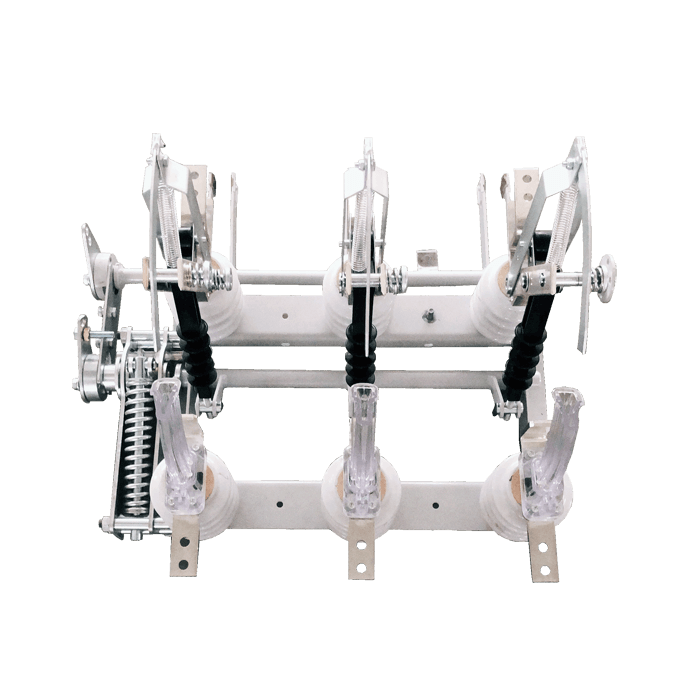

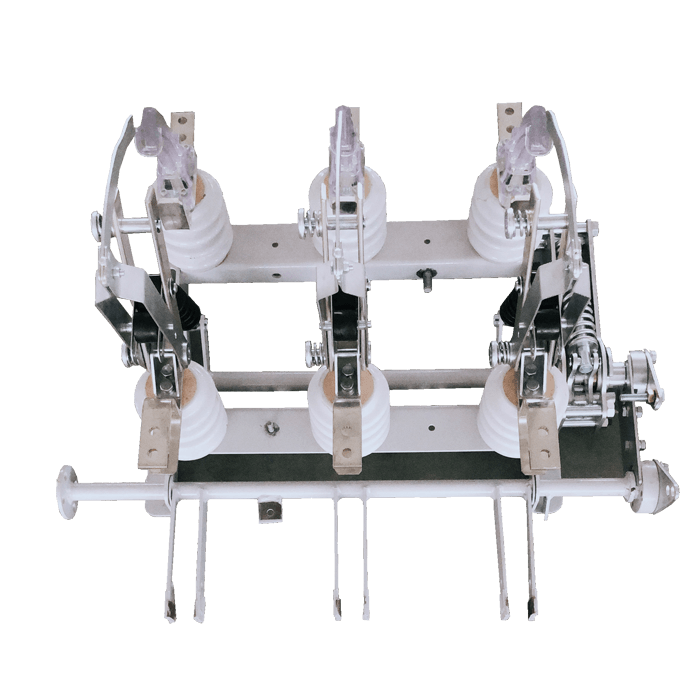

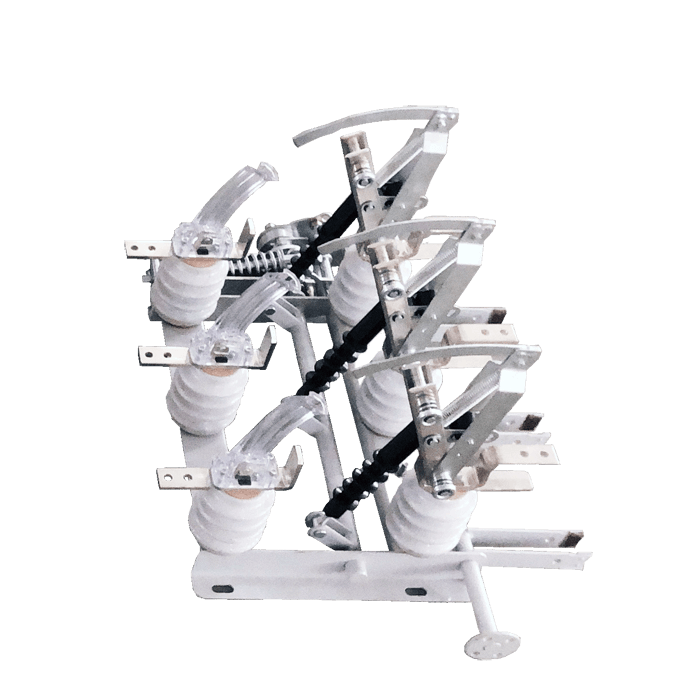

Indoor 10KV Rotary Type Load Break Disconnecting Switch

Indoor 10KV Rotary Type Load Break Disconnecting Switch from SanGao caters to switch cabinet producers, industrial power supply systems and distribution engineering projects that demand flexible manual manipulation and stable load breaking capacity. Drawing on SanGao’s years of expertise in high-voltage apparatus fabrication, the device integrates rotary operating mechanism, load interruption and circuit isolation, facilitating secure and streamlined medium-voltage power management on site.

Why Is Rotary Operation Important in 10KV Switching Systems?

In medium voltage distribution equipment, the operating mechanism directly affects switching reliability and maintenance efficiency. A stable operating structure helps operators complete switching actions accurately while reducing the risk of incomplete operation.

This rotary type design uses a mechanical rotating mechanism to control the switching process. Compared with more complicated operating structures, rotary operation provides a straightforward control method that is easier to integrate into indoor switchgear assemblies.

The Indoor 10KV Rotary Type Load Break Disconnecting Switch is mainly designed to:

• Connect and disconnect load currents

• Provide isolation during inspection work

• Support safe operation of 10KV distribution systems

• Reduce space requirements inside switchgear cabinets

For panel builders and electrical contractors, a compact rotary mechanism can simplify cabinet design and improve installation flexibility.

Designed for Smooth Mechanical Operation and Long Service Life

Indoor 10KV Rotary Type Load Break Disconnecting Switch is operated repeatedly throughout its service life, making mechanical reliability a key purchasing consideration.

SanGao focuses on the parts that directly influence operating performance:

Stable Rotary Mechanism

The rotating operating structure provides direct mechanical movement, helping maintain consistent opening and closing actions during repeated operations.

Reliable Load Interruption

The internal arc-extinguishing mechanism is designed to support safe load-breaking operations within rated conditions.

Compact Internal Layout

The space-saving structure helps customers install switching components efficiently in indoor medium voltage systems.

Clear Operation Status

The mechanical position indication helps operators quickly confirm switching conditions before performing maintenance.

Technical Specifications

Specifications may vary according to different system requirements. SanGao can provide detailed technical documents based on customer project conditions.

Application Scenarios for 10KV Indoor Distribution Systems

The rotary structure provides practical advantages in applications where equipment space and operation convenience are important.

Factory Power Distribution Systems

Manufacturing plants often use 10KV power supply systems for production equipment. Reliable load switching helps maintenance teams isolate sections of the network without affecting unnecessary areas.

Indoor Switchgear Assemblies

Switchgear manufacturers can integrate this Indoor 10KV Rotary Type Load Break Disconnecting Switch into compact cabinets where operating space is limited.

Commercial and Infrastructure Projects

Large buildings, transportation facilities, and public infrastructure require stable medium voltage distribution equipment that can support routine maintenance.

Grid Expansion and Upgrade Projects

When upgrading existing distribution systems, customers need equipment that can fit current layouts while improving operational safety.

Why Choose SanGao for Rotary Load Switching Equipment?

Customers selecting Indoor 10KV Rotary Type Load Break Disconnecting Switch usually consider whether the supplier can provide stable products and practical technical support.

SanGao helps customers through:

High Voltage Product Experience

SanGao focuses on medium and high-voltage electrical products rather than general electrical trading, including load switches, vacuum circuit breakers, disconnectors, grounding switches, and protection equipment.

Project Communication Capability

Different switchgear designs may require different installation dimensions and operating arrangements. SanGao provides technical communication before production.

Complete Manufacturing Chain

From design confirmation to production testing, SanGao manages key processes internally, helping reduce coordination difficulties for overseas buyers and engineering companies.

FAQ

1. What is the advantage of a rotary operating mechanism?

The rotary mechanism provides a direct operating method that helps maintain consistent switching action and simplifies mechanical control.

2. Can this Indoor 10KV Rotary Type Load Break Disconnecting Switch be used in 10KV indoor switchgear?

Yes. It is designed for indoor 10KV medium voltage distribution systems and can be integrated into suitable switchgear applications.

3. What are the rated voltage and current values?

The rated voltage is 10KV and the rated current is 630A. The breaking capacity is 20kA based on model suffix.

4. Does the equipment require regular maintenance?

Regular inspection of the operating mechanism, contacts, and insulation components is recommended to maintain reliable long-term operation.
