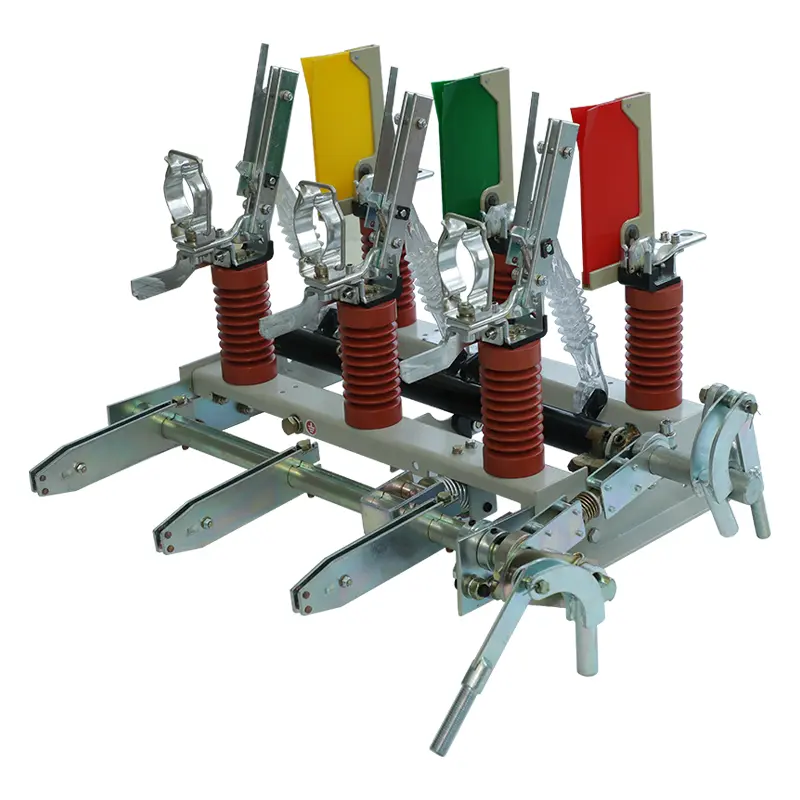

Indoor Air Load Break Switch with Fuse Holder

As an experienced manufacturer of Indoor Air Load Break Switch with Fuse Holder, SanGao provides all-in-one switching apparatus applicable to industrial plants, power distribution rooms and renewable energy construction projects. Drawing on decades of expertise in high-voltage equipment production, this unit is precisely engineered to switch load current stably and deliver supplementary protection via its built-in fuse holder assembly, enabling users to construct safer, higher-efficiency electrical power systems.

A Practical Switching Solution for Medium Voltage Distribution

In medium voltage power systems, operators need equipment that can handle daily switching tasks while maintaining safe operation during maintenance. This Indoor Air Load Break Switch with Fuse Holder combines load breaking capability with fuse installation, providing a compact solution for circuit control and equipment protection.

The structure is designed for applications where customers require:

• Reliable connection and disconnection of load current

• Additional protection for electrical components

• Clear isolation during maintenance work

• Reduced equipment arrangement complexity

Compared with systems that use multiple separate devices, an integrated design can help reduce installation space requirements and simplify operation procedures.

How Does Air Insulation Improve Daily Operation?

The insulation method directly affects equipment maintenance requirements and environmental impact.

This Indoor Air Load Break Switch with Fuse Holder uses air as both insulation and arc extinguishing medium, avoiding the use of SF₆ gas and oil.

Key benefits include:

No SF₆ Gas Management

Customers do not need to manage gas leakage monitoring or specialized gas handling procedures.

Cleaner Operation

Air insulation supports environmentally responsible power system development without concerns related to toxic insulation materials.

Simplified Maintenance

The structure contains fewer insulation-related components, helping reduce inspection workload during long-term operation.

For power operators managing multiple distribution points, simpler maintenance procedures can reduce service time and improve operational efficiency.

Designed for Safe Switching and Equipment Protection

SanGao focuses on practical engineering requirements when developing medium voltage switching equipment. The Indoor Air Load Break Switch with Fuse Holder combines mechanical reliability with protective functions required by modern distribution systems.

Main features include:

Load Current Switching Capability

The equipment is designed to safely connect and disconnect load currents under rated operating conditions.

Fuse Holder Integration

The fuse holder structure allows protective fuses to be installed within the switching system, helping protect connected equipment against abnormal current conditions.

Mechanical Interlocking System

The built-in mechanical interlocking design helps prevent incorrect operation and improves operator safety.

Clear Operating Indication

Visible switching status allows maintenance personnel to quickly identify whether the circuit is connected or isolated.

Technical Specifications

Installation Guidance and Technical Support

Proper installation is essential for maintaining switching performance. SanGao provides technical documents and support to help customers complete Indoor Air Load Break Switch with Fuse Holder installation and commissioning.

Support services include:

• Product installation manuals

• Operating instructions

• Technical consultation

• Application communication

For engineering companies, clear documentation helps reduce installation mistakes and improves project progress.

FAQ

1. What is the purpose of the fuse holder design?

The fuse holder allows protective fuses to be integrated into the switching system to provide additional protection for connected electrical equipment.

2. Can this equipment be installed outdoors?

This Indoor Air Load Break Switch with Fuse Holder is designed for indoor medium voltage distribution systems. Outdoor applications require suitable outdoor-rated equipment.

3. Does the product require SF₆ gas maintenance?

No. The insulation and arc extinguishing medium is air, so SF₆ gas maintenance is not required.

4. What voltage systems can use this equipment?

It is suitable for 12kV-24kV medium voltage power distribution applications.
