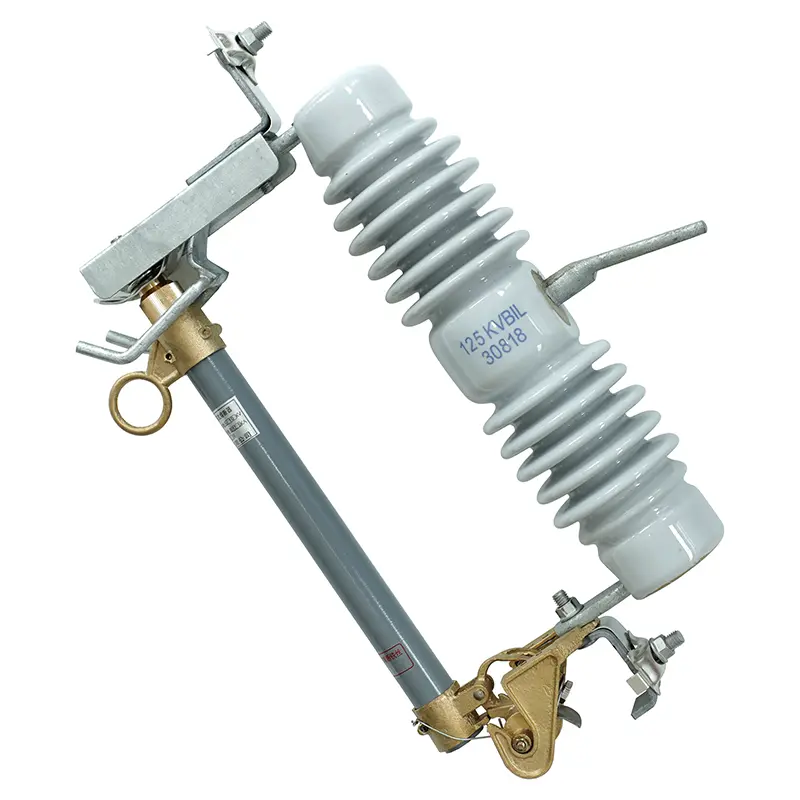

Electric Surge Protector Breaker Fuse Cutout

The SanGao Electric Surge Protector Breaker Fuse Cutout Made in China represents a highly economical, pure physical protection method for medium-voltage lines. By combining mechanical circuit disconnection with superior thermal arc-quenching capabilities, this device acts as a primary firewall for overhead lines from 11KV to 38KV. It effectively limits peak short-circuit currents to protect expensive downstream digital assets like voltage regulators and smart reclosers, making it an essential wholesale choice for demanding power distribution projects.

Engineering Bottlenecks Solved: Overcoming Thermal Fatigue

A major failure mode in standard overcurrent cutouts is thermal fatigue on the top contact assemblies, which leads to weak contact pressure, arcing, and localized melting. SanGao solves this by utilizing thick, silver-plated copper alloy contact blocks backed by heavy-duty stainless steel leaf springs. This setup maintains constant mechanical pressure over decades of temperature swings.

Furthermore, while competitor models often use brittle, low-grade resins that warp under extreme solar heating, SanGao uses specialized outdoor-grade electrical ceramics and UV-stabilized composite materials. This ensures the unit maintains structural integrity during blistering +40°C summers and freezing -40°C winters.

Technical Data and Environment Rules

The operational stability of the Electric Surge Protector Breaker Fuse Cutout is guaranteed when deployed within these precise parameters:

• System Operational Voltage: 11KV to 38KV overhead distribution networks.

• Ambient Working Temperature: -40°C to +40°C.

• Altitude Constraint: 1000 meters maximum without adjustment (custom engineering available for higher elevations).

• Rated AC Frequency: Up to 100Hz maximum grid operation.

• Breaking Interruption Rating: Interruption capability up to tens of thousands of amperes.

• Structural Load Limit: Must not exceed the specified rated mechanical load.

Target Applications and Projects

This versatile Electric Surge Protector Breaker Fuse Cutout is widely integrated into:

• Sewage Treatment Facilities: Protects high-power industrial pump motors from line faults caused by regional grid instability.

• Metallurgical and Mining Operations: Deployed in heavy dust and vibration environments to safeguard overhead feeder lines supplying smelting furnaces.

• Residential Power Engineering: Provides reliable, low-maintenance circuit isolation on overhead distribution taps feeding high-density residential complexes.

Detailed Installation Guide

Every shipment comes complete with a comprehensive, step-by-step graphic installation manual. The unit features universal NEMA mounting brackets that mount easily to standard wooden or concrete crossarms. Installation requires minimal specialized tooling and can be completed by a standard utility line crew in approximately 30 minutes under normal outdoor conditions.

Surge Protection & Electrical FAQ

Can this Electric Surge Protector Breaker Fuse Cutout be installed horizontally on a crossarm?

No, it must be installed at a specific angle (typically 15 to 20 degrees from vertical). This incline is necessary to ensure that gravity pulls the fuse holder downward into the open position immediately after the internal element melts.

How does this mechanical cutout protect digital downstream electronics from surge anomalies?

By melting within milliseconds during a major short circuit, the fuse strip limits the peak let-through current (I²t). This prevents massive thermal energy surges from reaching and destroying electronic components down the line.

What kind of periodic maintenance does this cutout switch require?

Because it is a physical mechanical device with high action certainty, it requires very little maintenance. Line crews should visually inspect the contact surfaces for pitting and wipe down the insulator body during standard annual system checkups.
