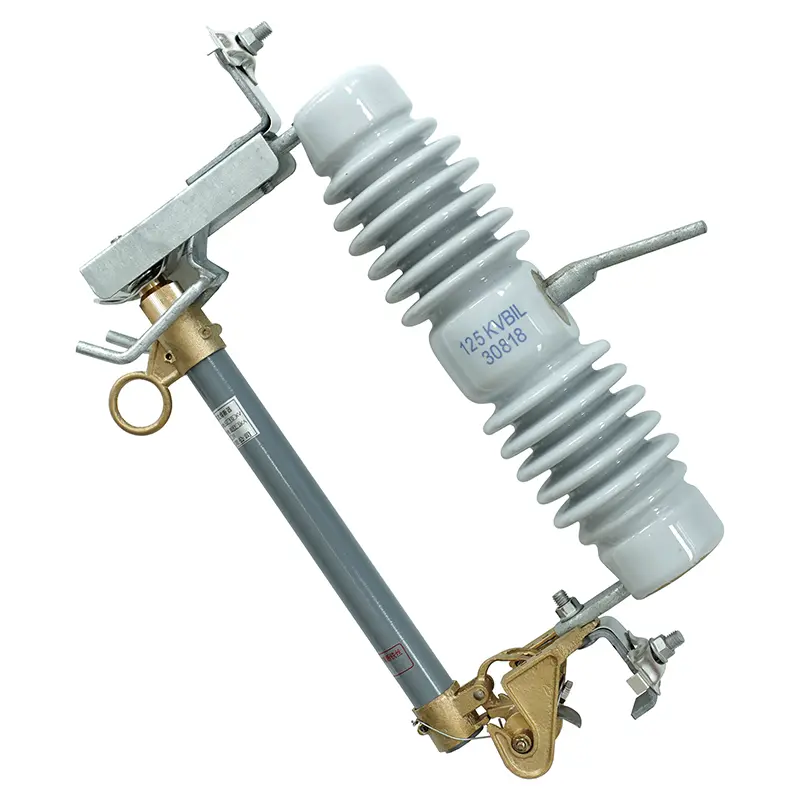

Electric Fuse Drop Cutout Switch

As a reliable wholesale supplier of Electric Fuse Drop Cutout Switch , SanGao provides high-efficiency fault isolation solutions for global power engineering contractors. The product is equipped with an optimized high-strength fuse tube. When a short circuit fault occurs, the inner lining material generates arc-extinguishing gas, which can extinguish electric arcs within milliseconds. Subsequently, the fuse tube automatically drops under gravity, forming a visible safe isolation gap, which is convenient for construction personnel to confirm faults and carry out maintenance.

Product Performance Parameters

All products are manufactured and tested in strict accordance with industry standards, with stable and reliable operating parameters as follows:

Design Innovation: Arc Quenching and Anti-Interference Architecture

Unlike electronic circuit breakers that can experience component errors due to electromagnetic interference (EMI) or software glitches, this Electric Fuse Drop Cutout Switch operates as a pure physical mechanical device. Its action certainty is governed entirely by the physical properties of its internal fusible strip, giving it unparalleled anti-interference capabilities.

The fuse tube itself utilizes a dual-layer design: an inner liner of bone-fiber vulcanized material surrounded by a high-strength epoxy fiberglass outer shell. When a fault current strikes, the extreme heat causes the inner bone fiber to generate an intense, pressurized gas blast. This gas blows the ionized particles straight out the bottom of the tube, safely extinguishing currents up to tens of thousands of amperes in a fraction of a second without rupturing the tube structure.

Application Scenarios

The Electric Fuse Drop Cutout Switch serves as a vital circuit protection barrier across major engineering layouts:

Suburban Rail Power Feeders: Protects trackside auxiliary power systems from structural short circuits caused by overhead line issues.

Overhead-to-Underground Transitions: Placed directly at the riser poles where overhead wires connect to underground cables, protecting expensive sub-surface insulated cables.

Capacitor Bank Isolators: Protects large power-factor correction capacitor banks from catastrophic housing ruptures during sudden internal component faults.

Quality Control & Testing

Our Electric Fuse Drop Cutout Switch strictly complies with the ISO9001:2008 quality management system. Each batch of products undergoes multiple rigorous tests including mechanical calibration, contact pressure detection and high-voltage dielectric withstand test. It is ensured that the switching mechanism operates flexibly without jamming under full-load and heavy mechanical working conditions.

FAQ

1. Why does the fuse tube fail to drop after the fuse link melts?

The main causes are hinge corrosion and insufficient contact tension. SanGao adopts high-strength corrosion-resistant brass castings and stainless steel backup springs. The structure can push the fuse tube to drop instantly after the fuse link breaks, completely avoiding stuck failure.

2. What is the function of the inner lining of the fuse tube?

The inner bone fiber material vaporizes rapidly under high arc temperature, generating high-pressure gas to blow out ionized arc current from the tube bottom, realizing millisecond-level arc extinction and fault clearing.

3. How to adapt the product to 2200m high-altitude installation?

The low air density at high altitude will reduce dielectric strength. For installation above 1000 meters, we will customize the Electric Fuse Drop Cutout Switch Fuse by increasing the insulator creepage distance to avoid high-altitude flashover faults.
