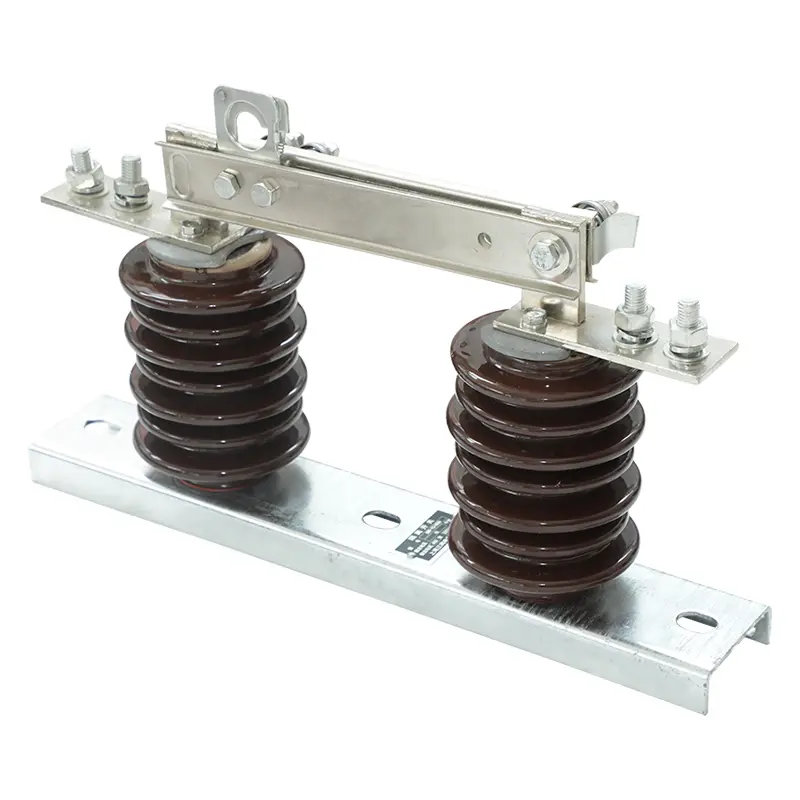

Outdoor Isolation AC Switch

The Sangao outdoor isolation AC switch is a sturdy and durable switch suitable for turning on and off AC circuit systems, such as photovoltaic systems and air conditioning systems. This weatherproof isolation switch is particularly suitable for outdoor installation, with a protection level of up to IP66. The base installation mechanism provides more convenient termination and wiring space. Not only can it withstand water flow impact, but it can also switch frequently under high loads (such as motor loads or other high inductance loads). Suitable for various indoor and outdoor environments.

Product advantages

Load opening and closing

4 screws with protective covers, high-strength locking

IP66 protection level, UV resistant and flame-retardant materials

Both the top and bottom are equipped with 25mm double threaded conduit entrances

Lockable handle

Provide 5-year warranty, product insurance, and recall insurance

Suitable for almost any outdoor application. This series includes single pole, double pole, and triple pole switches ranging from 20 to 63A.

The base installation mechanism makes wiring more convenient and saves more wiring space.

Application scope

Suitable for any outdoor application conditions. Including single pole, double pole, and triple pole switches, with a current range of 20A to 63A.

The installation of the equipment base makes wiring more convenient and saves more wiring space. (The switch size is 165mm × 82mm, with a total height of 85mm.)

Use double clamping screws to install the grounding wire and neutral wire strip, ensuring that the cable clamping tape is of the same length and the connection is reliable. The terminal aperture is 5-6mm.

It is safer to install the switch on a metal structure with an insulating cap that covers the mounting screws of the base to prevent it from being exposed to live cables.

Each device is equipped with a threaded conduit plug and a threaded reducer, which can be easily connected to 25mm or 20mm conduits and threaded caps. Nuts must be installed to ensure IP protection level.

The impact resistant base and cover can withstand almost any of the most intense impacts during installation. The two parts are sealed with integrated weatherproof gaskets.

For safety reasons, there is a 7mm diameter hole on the base used to lock the operating lever in the "closed" position. The deep molding protective layer can protect the operating rod from physical damage or accidental switching.

All products comply with the IEC60947-3 standard.

The standard color is gray.

Product advantages

Load opening and closing

4 screws with protective covers, high-strength locking

IP66 protection level, UV resistant and flame-retardant materials

Both the top and bottom are equipped with 25mm double threaded conduit entrances

Lockable handle

Provide 5-year warranty, product insurance, and recall insurance

Environmental conditions:

1. The altitude shall not exceed 2000m or below.

2. The upper limit of ambient temperature in general areas is+40 ℃, and the lower limit is -30 ℃.

3. The wind pressure shall not exceed 8 degrees.

4. The seismic intensity shall not exceed 8 degrees.

5. The ice thickness shall not exceed 1mm.

6. The installation site should not experience frequent and severe vibrations.

7. Ordinary installation sites should be free of explosive and corrosive substances such as gases, vapors, chemical deposits, salt spray, dust, etc. that seriously affect the insulation and conductivity fatigue of isolation switches.

8. Anti pollution type is suitable for heavily polluted areas, but should not be used for substances that can cause excessive fires, explosions, etc.
