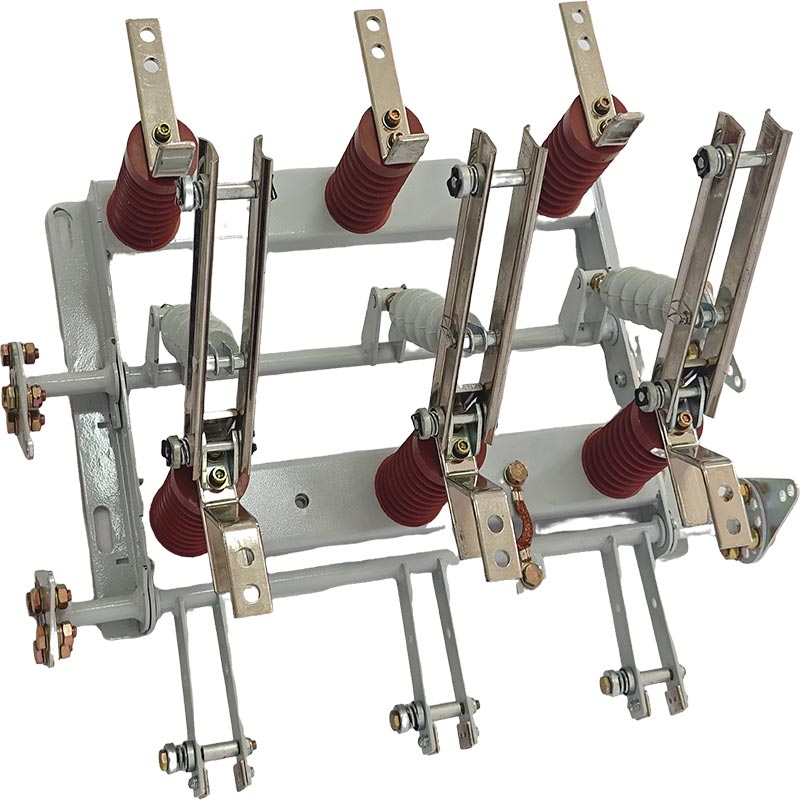

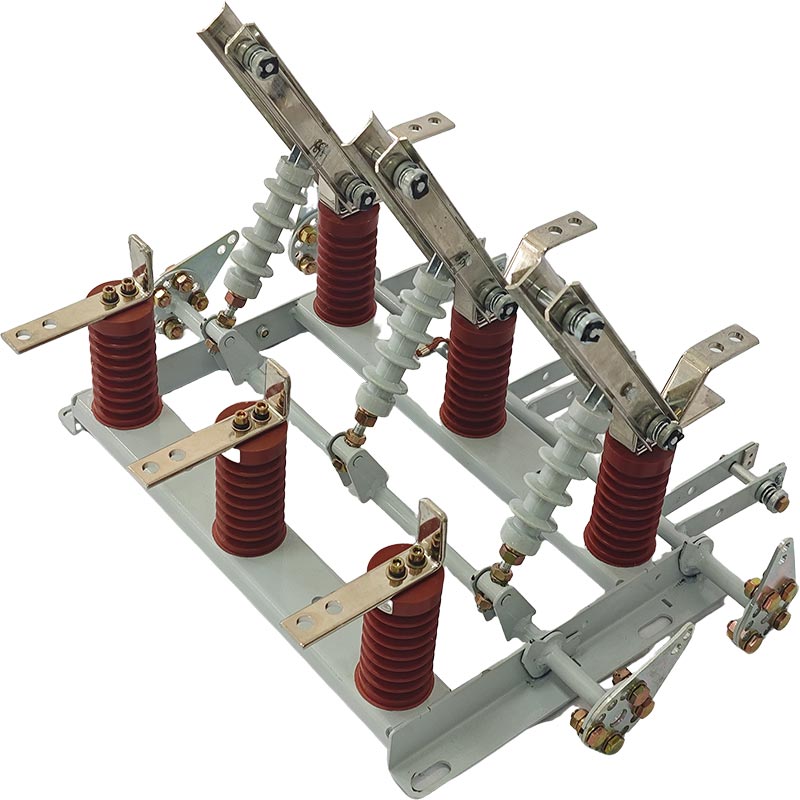

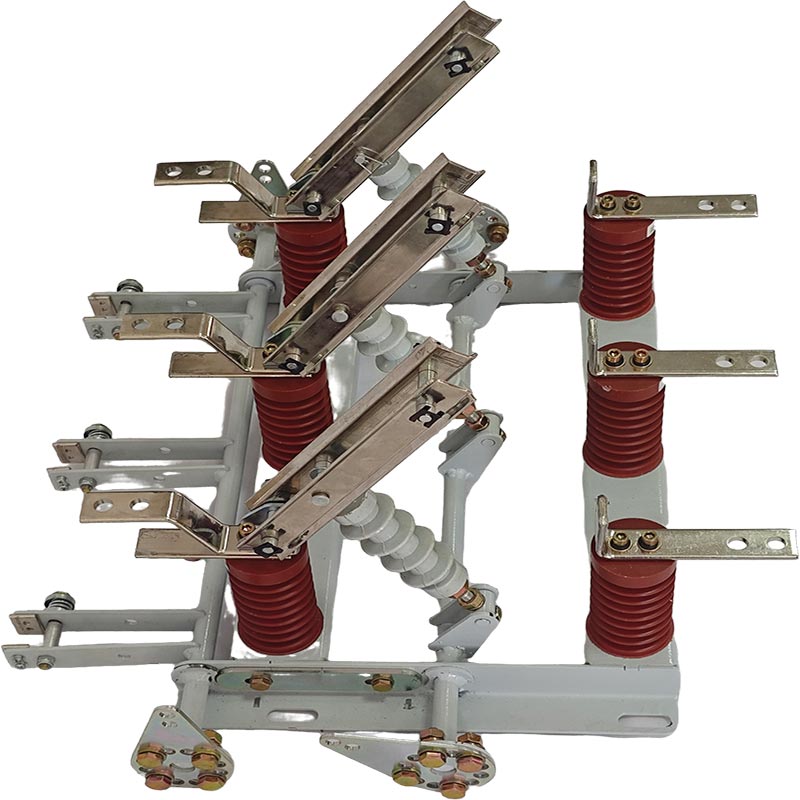

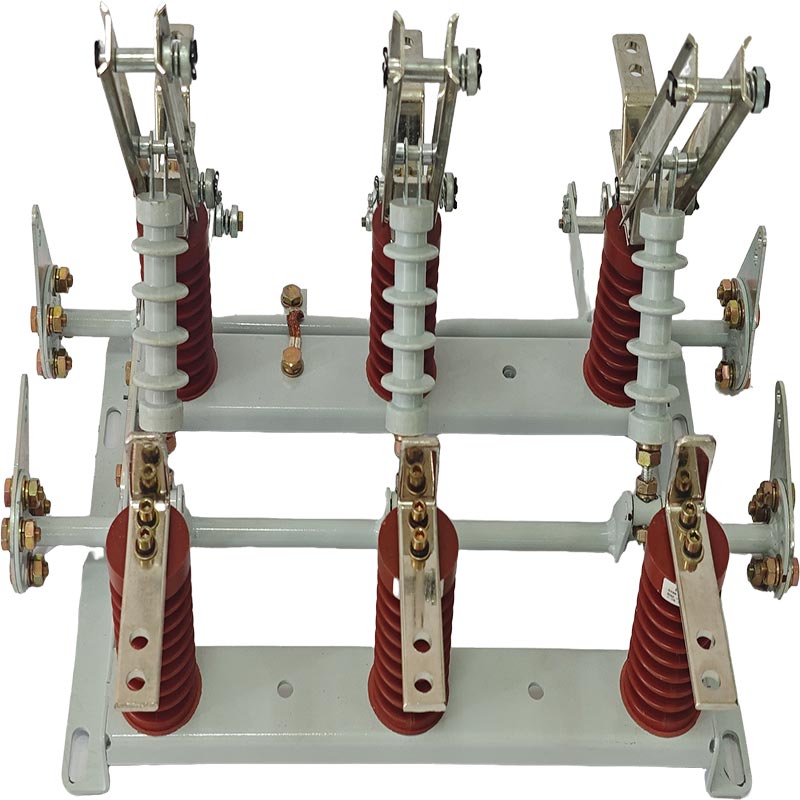

High Voltage Vacuum Load Break Indoor Switch with Earthing Switch

SanGao’s High Voltage Vacuum Load Break Indoor Switch with Earthing Switch is ideal for industrial power grids, substations and energy construction projects requiring reliable switching and earthing safeguards. Every unit undergoes rigorous R&D, standardized production and comprehensive testing, featuring stable vacuum arc interruption, intuitive operation and long-term reliable protection for indoor high-voltage working environments.

Combined Switching and Grounding Functions for Medium Voltage Systems

Modern power distribution projects require equipment that can perform multiple operations safely within limited installation space. This High Voltage Vacuum Load Break Indoor Switch with Earthing Switch integrates load breaking capability with an earthing function, allowing operators to manage power circuits more efficiently.

The vacuum interruption technology helps extinguish electrical arcs during switching operations, while the grounding mechanism supports safer maintenance procedures after circuit isolation.

Main functions include:

• Breaking load current under designed operating conditions

• Providing electrical isolation during maintenance

• Supporting grounding protection for working sections

• Improving operational safety in medium-voltage networks

For industrial users and power engineering companies, integrated switching equipment can reduce the need for separate components and simplify system design.

Vacuum Interruption Technology Improves Switching Reliability

Traditional switching solutions may experience greater contact wear and arc impact during frequent operations. Vacuum technology provides a controlled interruption environment that helps reduce arc duration and improve contact protection.

The design of High Voltage Vacuum Load Break Indoor Switch with Earthing Switch advantages include:

• Vacuum arc extinguishing chamber for reliable current interruption

• Reduced contact erosion during switching operations

• Stable electrical performance during repeated operation

• Compact structure suitable for indoor installation

SanGao focuses on practical engineering requirements, ensuring the internal structure supports stable operation in substations, industrial facilities, and power distribution rooms.

How Does the Earthing Function Improve Maintenance Safety?

Electrical maintenance requires strict isolation and grounding procedures. A reliable earthing function helps technicians establish safer working conditions after the circuit has been disconnected.

The integrated grounding design helps:

Improve Operator Protection

The grounding mechanism provides an additional safety measure during inspection and maintenance activities.

Simplify Operation Procedures

Combining switching and grounding functions within one device reduces the complexity of equipment arrangements.

Support Standardized Maintenance Management

Power operators can follow clearer operating sequences when performing equipment inspection and repair.

Technical Specifications

The equipment is designed for medium-voltage systems requiring reliable load switching, isolation, and grounding operations.

Application Areas Where Reliable Switching Matters

This High Voltage Vacuum Load Break Indoor Switch with Earthing Switch is suitable for industries where power continuity, maintenance safety, and equipment protection are important.

Industrial Power Distribution

Manufacturing plants require stable electrical systems to avoid unnecessary production interruptions. This equipment supports maintenance operations while helping operators manage medium-voltage circuits safely.

Substations and Distribution Rooms

Power distribution facilities use integrated switching solutions to optimize equipment layout and improve operational procedures.

Renewable Energy Facilities

Wind power plants, photovoltaic projects, and hydropower stations require reliable switching devices for equipment inspection and system management.

Mining and Heavy Industry

Industries with demanding operating environments need durable electrical equipment that can support regular maintenance and long-term operation.

Installation, Operation Guidance, and Customer Support

High-voltage equipment requires correct installation and operation procedures. SanGao provides technical documents and application support to help customers complete installation correctly.

Service support includes:

• Installation manuals

• Product operation guidance

• Technical consultation

• Project-specific communication

For overseas customers and engineering contractors, professional documentation helps reduce installation errors and improves project efficiency.

FAQ

1. What is the advantage of using vacuum interruption technology?

Vacuum interruption helps control electrical arcs during switching operations, reducing contact damage and supporting stable long-term operation.

2. Can this equipment provide grounding protection?

Yes. The design of High Voltage Vacuum Load Break Indoor Switch with Earthing Switch includes an earthing switch function to support safer maintenance procedures after circuit isolation.

3. What power systems are suitable for this equipment?

It is suitable for indoor 6-12kV power systems with a rated frequency of 50-60Hz, including industrial distribution networks and substations.

4. Does SanGao provide operation instructions?

Yes. SanGao can provide professional installation and operation documents according to customer requirements.
