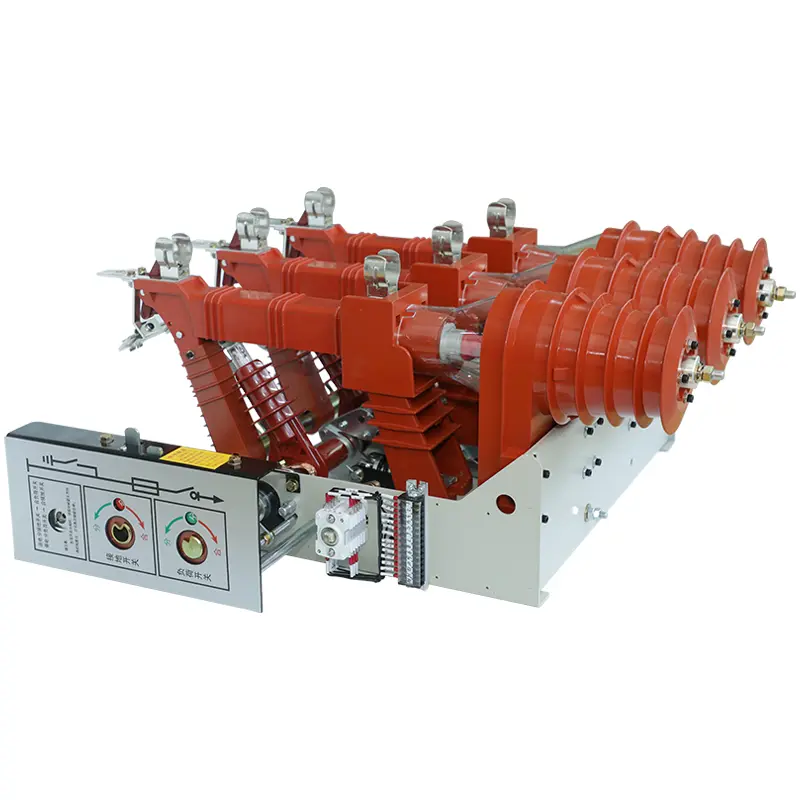

HV Vacuum Load Break Switch

SanGao high quality HV Vacuum Load Break Switch, As independent components, they are offered at highly competitive prices. We offer two types of switches: the ultra-high speed model HVS-XXX-F, which can vary voltage within ± 15% of the rated value; And switch model HVS-XXX-V with a wide range of applied voltage.

Send Inquiry

Product Description

The SanGao durable HV Vacuum Load Break Switch is designed specifically for applications such as Pockels box drivers, nanosecond pulse generators, laser diode drivers, and more. The latest developments in semiconductor technology combined with our cutting-edge proprietary designs have become the product you most desire in your dreams. If you are interested, please find my contact information and contact me!

Rich selection of ON and OFF types, as well as push-pull and single pulse selection (PULSE PICKERS) models.

Main Features

1. The cabinet structure adopts an assembled type, and the circuit breaker adopts a handcart floor standing structure;

2. The HV Vacuum Load Break Switch adopts a brand new composite insulation vacuum circuit breaker with good compatibility and easy replacement;

3. The handcart is equipped with a screw nut propulsion mechanism, which can be easily moved by the handcart and prevent damage to the propulsion mechanism due to misoperation;

4. All operations can be performed with the cabinet door closed;

5. The interlocking between the main switch, handcart, and cabinet door adopts forced mechanical locking to meet the "five prevention" function;

6. The cable room is spacious and can connect multiple cables;

7. Equipped with a quick grounding switch for grounding and line short circuits;

8. The protection level of the shell is IP3X, and when the handcart door is opened, the protection level is IP2X; nine The product complies with IEC62271-200, GB 3906-2006, DL/T 404-2007 standards, and references the international IEC 298 standard.

Conditions of Use

1. Environmental temperature: -30 ℃~+50 ℃, and the average RH measured within 24 hours is ≤ 50 ℃;

2. Altitude: not exceeding 2500m above sea level;

3. Environmental humidity: daily average RH ≤ 95%;

Monthly average RH ≤ 90%

4. Earthquake intensity: ≤ 8 degrees;

5. Water vapor pressure: daily average RH ≤ 2.2kPa;

Monthly average RH ≤ 1.8kPa;

6. Surrounding environment: places without fire, explosion hazards, serious pollution, chemical corrosion, and severe vibration.

FAQ

QHow many days you need to install the equipment?

It takes about 30 minutes to innstall equipment generally
QCan the equipment be installed under hot weather?

The installation environment for outdoor switches is around 40 degrees Celsius
QCan Your products be installed under the cold weather?

The installation environment for outdoor switches is around minus 35 degrees Celsius.
QCan I only buy some spare parts from you?

Yes,the MOQ is 50 units.
QWill you will attend the fair to show your products?

Yes,we will provide advance notice on our official website
QHow long it takes you to provide the designing options for us?

It depend on the complexity of the project.
QHow do you pack the equipment?

We use export-compliant wooden crates to pack the equipment
QCan you can design the equipment according to our size?

Yes,we will meet customer's requirments ASAP.
QDo you have any real project pictures of the equipment?

Yes,we uploaded in About US and also we will send you when you need.
QDo you have detailed and professional installation manual?

Yes,we will send them when customers need.
QIf OEM is acceptable?

We can offer OEM and ODM service.
QWhat is your term of payment?

Delivery upon receipt of payment.
QAre you a trading company or a manufacturer?

Yes,we are the professional manufacturer with 30years
QHow long is your delivery time?

Lead time depends on order quantity.Usually in 3-5days before shipping.
