Why Is the High Voltage Grounding Switch Critical for Power System Safety and Maintenance?

In power transmission and distribution systems, safety is paramount. One often overlooked but essential component is the High Voltage Grounding Switch. This device plays a vital role in protecting both equipment and personnel during maintenance, fault conditions, and routine operations. This article examines what a grounding switch does, how it works, and why it is indispensable in medium-voltage switchgear and substations. We also look at the manufacturing quality, certifications, and reliability that SanGao brings to this critical electrical component.

The Unsung Hero of Electrical Safety

When we think of high-voltage equipment, circuit breakers and transformers often come to mind. Yet, the High Voltage Grounding Switch is just as crucial for the safe operation and maintenance of power systems. Installed inside switchgear cabinets or substations, this device provides a reliable path to ground, ensuring that technicians can work safely on de-energized equipment and that fault currents are effectively managed.

Without a properly functioning grounding switch, maintenance crews would face the risk of accidental energization, induced voltages from adjacent live lines, and dangerous transient overvoltages. SanGao, a high-tech enterprise based in China's electrical capital Liushi, has been manufacturing these essential components for years, adhering to stringent quality standards and serving diverse industries from urban grid renovations to wind power plants.

What Is a High Voltage Grounding Switch?

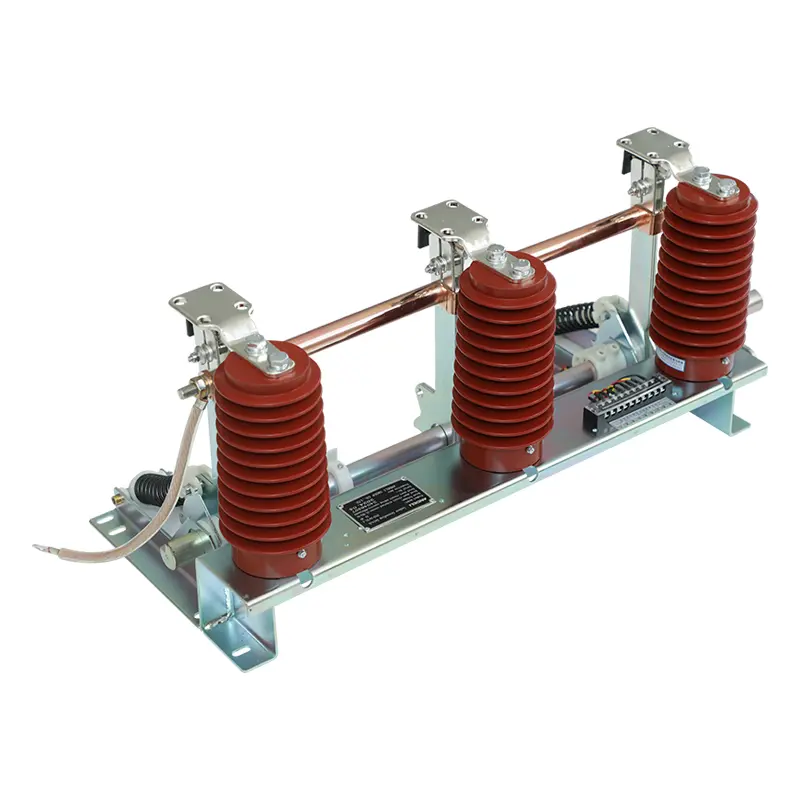

The High Voltage Grounding Switch is a mechanical switching device designed to connect a specific part of an electrical circuit to ground. It is typically installed in high-voltage switchgear (3-12kV, three-phase AC 50/60Hz systems) and is operated manually or by a motor mechanism. Its primary structure consists of a bracket, a grounding knife assembly, fixed contacts, a sensor, a rotating shaft, compression springs, conductive sleeves, and flexible connections.

When closed, the grounding knife makes firm contact with the static contact, creating a low-impedance grounding path. This path serves multiple safety and operational functions, which we will explore below.

Key Functions: More Than Just Grounding

The High Voltage Grounding Switch serves multiple critical functions beyond simple earthing:

Personnel Protection During Maintenance

When a circuit breaker is opened and isolated, the adjacent busbar or equipment may still carry induced voltage or residual charge. The grounding switch provides a visible and secure ground connection, ensuring that maintenance personnel are protected from accidental energization or capacitive discharge.

Limiting Transient Overvoltages

During ground faults, especially in heavy systems, transient overvoltages can occur. The grounding switch limits these voltage surges by providing a low-impedance path, thereby protecting sensitive equipment and insulation.

Eliminating Induced Voltages

In cases of parallel transmission lines on the same tower, de-energized lines can still experience induced voltages from adjacent live lines due to electrostatic and electromagnetic coupling. Grounding switches on these lines provide a path to dissipate these induced currents, preventing hazards.

Closing Short-Circuit Currents

Some grounding switches are designed to close against short-circuit currents. This capability ensures that the switch can be operated even under fault conditions, providing additional safety during emergency procedures.

Establishing a System Neutral Reference

In substations with large power transformers, the grounding switch helps maintain a consistent voltage reference point, stabilizing the power grid and ensuring safe operation.

Applications: Where Is It Used?

The High Voltage Grounding Switch is widely used in power distribution and transmission systems, including:

• Urban and rural power grid renovations – Upgrading aging infrastructure requires reliable grounding for safety and compliance.

• Substations and switchgear cabinets – Integral to medium-voltage switchgear assemblies.

• Wind power plants and hydropower stations – Providing grounding for generators and transformers.

• Metallurgical and petrochemical industries – Protecting equipment and personnel in harsh environments.

• Railway and mining installations – Ensuring safe grounding in traction power systems.

• Residential and commercial building power projects – For incoming feeders and emergency systems.

The SanGao Advantage: Quality and Reliability

SanGao has built a reputation for high-quality high-voltage equipment. The company's manufacturing facility spans 10,000 square meters, with a registered capital of 81.68 million yuan and total assets of approximately 200 million yuan. With 120 employees, including 20 senior and mid-level technical professionals, SanGao maintains a strong focus on R&D and quality assurance.

The company adheres to ISO 9001:2008 quality management, ISO 14001 environmental management, and OHSMS 18001 occupational health and safety systems. It also employs modern ERP management and advanced testing equipment to ensure each High Voltage Grounding Switch meets rigorous performance standards. Collaborating with institutions like Xi'an Senyuan and the Beijing Electrical Research Institute, SanGao ensures its products are at the forefront of electrical engineering.

Their grounding switches are designed with a robust mechanism that uses compression springs to ensure rapid and reliable closing/opening, with consistent contact pressure maintained through disc springs. This design ensures low contact resistance and long service life even under frequent operation.

Frequently Asked Questions (FAQ)

Q: What is the primary purpose of a high voltage grounding switch?

A: Its primary purpose is to provide a visible and secure grounding point for de-energized equipment, protecting technicians from accidental energization and dissipating induced voltages and charges.

Q: Where is the grounding switch typically installed?

A: It is usually installed inside medium-voltage switchgear cabinets (3-12kV), as well as in substations and at the line side of transformers.

Q: Can a grounding switch close against a short-circuit current?

A: Yes, many grounding switches are rated for short-circuit closing current, allowing them to be operated safely even under fault conditions.

Q: How does the grounding switch protect against induced voltages?

A: On transmission lines that run parallel to energized lines, the grounding switch provides a path for induced currents to flow to ground, preventing dangerous voltages from appearing on de-energized lines.

Conclusion

The High Voltage Grounding Switch may not be the most glamorous component of a power system, but its importance cannot be overstated. It safeguards lives, protects expensive equipment, and ensures stable grid operation during faults and maintenance. By providing a reliable ground path, it helps prevent accidents, reduces downtime, and maintains the integrity of the electrical network.

SanGao offers grounding switches that combine robust mechanical design, high-quality materials, and strict quality control to deliver dependable performance in demanding applications. With a strong technical foundation and commitment to continuous improvement, SanGao has become a trusted supplier to power utilities, industrial plants, and infrastructure projects across China and beyond.

If you are looking for a reliable source of high-voltage grounding switches, or need technical assistance for your specific project, we invite you to contact us today. Their experienced engineering team can provide product specifications, custom solutions, and timely support. Reach out through the company website or email to discuss your requirements and discover how SanGao can contribute to the safety and efficiency of your power systems.
