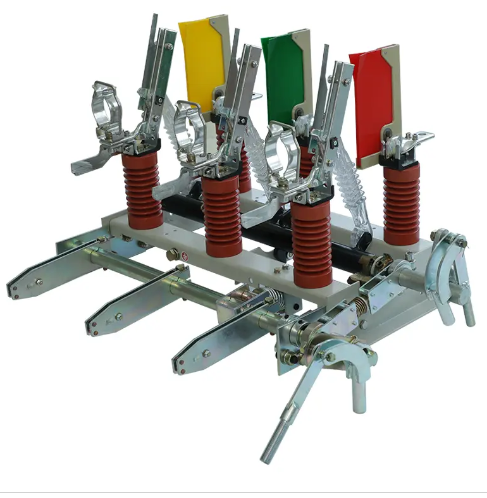

Sangao Air Load Break Switches: Safe, Simple, and Sustainable MV Switching

In today’s evolving power landscape, distribution network operators face increasing pressure to ensure uptime, reduce environmental impact, and lower total cost of ownership. The air load break switch addresses all three challenges with a time‑tested yet continuously improved design. Unlike SF₆ switches that require periodic gas handling and pose greenhouse gas risks, or oil‑filled devices that demand messy maintenance, the air switch leverages the most abundant and harmless medium – air. Its mechanical simplicity translates into fewer failure points, while clear position indicators and interlocking mechanisms reduce operational errors. This is why utilities, renewable energy developers, and industrial facilities worldwide are turning to air load break switches as their preferred isolation and switching solution.

1. The Reliability Paradigm of Air Load Break Switches

What makes an air load break switch truly reliable? At San Gao Electric, we believe it is the synergy of four pillars: structural simplicity – fewer moving parts reduce failure modes; natural insulation – air eliminates leakage risks and toxicity; robust arc extinction – optimised magnetic and airflow design ensures consistent interruption; and operator‑friendly safety – mechanical interlocks and clear status indication prevent misoperation. These attributes are validated through rigorous testing and decades of field experience across diverse climates and load conditions.

1.1 Why Air – The Green Imperative

The drive to phase out SF₆ is accelerating worldwide due to its extremely high global warming potential (GWP ≈ 23,500). While SF₆ offers superior insulation, its lifecycle emissions – from leakage to end‑of‑life disposal – impose a heavy environmental burden. Air load break switches provide a direct, proven alternative for medium‑voltage applications. With proper electrode geometry and arc‑control techniques, air can safely interrupt load currents up to 1250A at 24kV. Moreover, air switches are inherently immune to gas‑pressure variations caused by temperature changes, ensuring consistent performance in harsh climates from deserts to high‑altitude substations.

2. Core Technical Advantages

San Gao’s air load break switch builds on proven principles while incorporating modern engineering improvements for enhanced reliability, safety, and ease of integration. Below are the key differentiators that set our product apart.

• Rated Voltage: 12kV / 24kV
• Rated Current: 630A / 1250A
• Short‑Circuit Making Capacity (peak): 50kA
• Mechanical Endurance: ≥ 10,000 operations
• Electrical Endurance: ≥ 5,000 operations
• Protection Class: IP4X (indoor) / IP54 (outdoor)
• Ambient Temperature: -25°C ~ +55°C
• Altitude: up to 3000m

2.1 Arc‑Quenching Performance

The arc chamber employs a combination of longitudinal magnetic field and self‑generated airflow. When the moving contact separates, the arc is driven by magnetic forces into a set of arc‑splitter plates, where it is elongated, cooled, and extinguished at the next current zero. This method minimises contact burning and enables high repetitive switching capability. San Gao has validated the design through thousands of interruption tests, including rigorous motor‑starting and capacitor‑bank switching scenarios, to ensure dependable operation under the most demanding conditions.

2.2 Operating Mechanism – Simplicity and Security

The operating mechanism is available in spring‑stored energy or manual versions, both featuring anti‑pumping and auxiliary contact configurations. The manual handle provides ergonomic force feedback, and the position indicator is clearly visible from a distance. For remote control, an optional motor drive can be integrated, allowing seamless interfacing with SCADA and distribution automation systems. The interlock system ensures that the switch cannot be opened or closed unless the correct sequence is followed, substantially reducing the risk of human error.

3. Performance Specifications at a Glance

The following table provides a quick comparison of key parameters between San Gao’s air load break switch and a typical SF₆ load break switch, illustrating the practical advantages of air‑insulated technology.

4. Key Application Areas and Value

Air load break switches are deployed across a broad spectrum of medium‑voltage networks. Below are the most prominent applications, along with the specific benefits they deliver in each context.

• Urban & Rural Distribution Grids: Used as pole‑mounted or ring‑main units for line sectionalising, load transfer, and fault isolation – improving feeder automation and supply reliability.
• Industrial Power Systems: Controls large motors, transformers, and feeders in factories, mines, and processing plants, offering local isolation and switching without complex maintenance.
• Renewable Energy Plants: Connects and disconnects inverter or transformer circuits in solar and wind farms, handling frequent daily cycling with ease.
• Infrastructure Projects: Railways, airports, data centres, and hospitals rely on air switches for incoming/outgoing feeder isolation, ensuring safe maintenance and high availability.
• Commercial Building Substations: Serves as the main incomer or bus‑coupler switch in shopping malls, office towers, and educational campuses – contributing to green building certifications.

In each of these scenarios, the air switch’s maintenance‑friendly nature and clear visible break provide peace of mind. For example, in remote distribution lines, the lack of gas handling drastically reduces truck‑rolls and technician time. In solar farms, where switches may operate several times a day, the high mechanical endurance ensures many years of trouble‑free service. These real‑world benefits are why system planners increasingly specify air load break switches as the default choice for new and refurbished medium‑voltage installations.

5. Why San Gao Electric – Quality and Innovation

San Gao Electric is not just a manufacturer of switches – we are a partner in building safer, smarter power infrastructure. Headquartered in Liushi, the heart of China’s electrical industry, our 10,000 m² factory and team of over 120 experienced professionals are dedicated to delivering products that meet the highest international standards. With a registered capital of RMB 81.68 million and total assets approaching RMB 200 million, we have the financial stability and technical depth to support large‑scale projects worldwide.

Our commitment to quality is reflected in our ISO9001, ISO14001, and OHSMS18001 certifications. We have built strong business relationships across Europe, the Americas, Australia, and Africa, earning a reputation as a trusted partner for high‑voltage solutions. Beyond air load break switches, our product portfolio includes vacuum load break switches, circuit breakers, disconnectors, surge arresters, and transformer accessories – providing comprehensive protection and control for any medium‑voltage network.
