What Are Earthing Switches?

Earthing switches, often referred to as grounding switches, are critical components designed to ensure the safety of personnel and equipment during maintenance and fault conditions. These devices provide a visible earth connection to de-energized parts of a circuit, preventing electric shock from accidental re-energization or induced voltages. Understanding their function, types, and specifications is essential for engineers and procurement specialists. This article delves into the details of what earthing switches are and why they are indispensable in electrical infrastructure.

Core Function and Importance

The primary function of an earthing switch is to safely discharge and ground electrical energy that may be stored in a system. After a circuit is de-energized by a circuit breaker or isolator, residual capacitive energy can remain. An earthing switch provides a safe path for this energy to dissipate into the ground, protecting maintenance workers from dangerous electrical shocks. This makes them a non-negotiable safety feature in substations, power plants, and industrial switchgear.

Key Components and Design Features

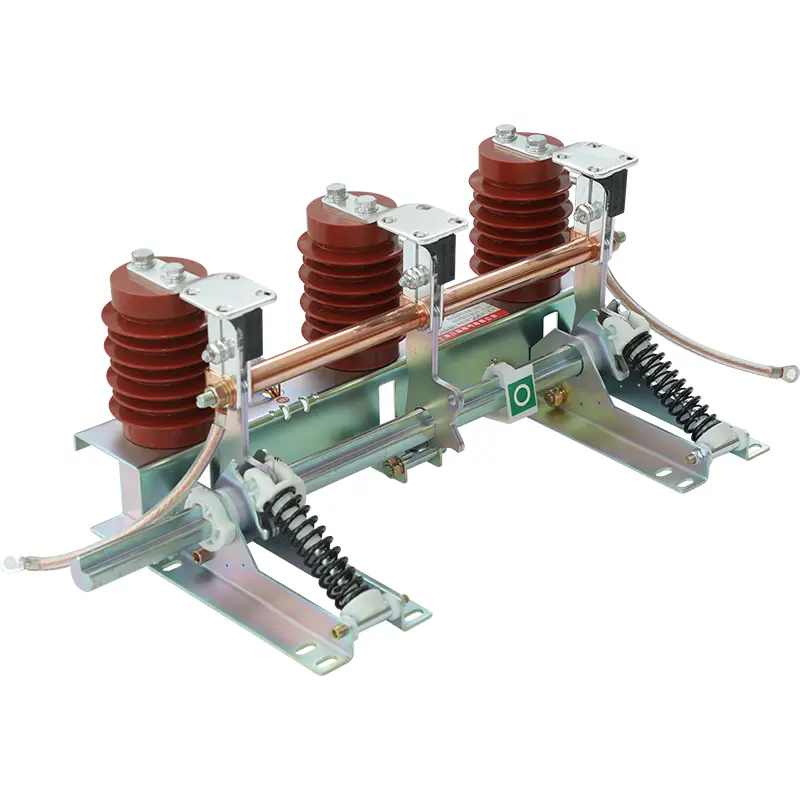

A typical earthing switch consists of a set of contacts, an operating mechanism, and an insulated base. The contacts are designed to make a robust connection to the earth bar or grounding system. The operating mechanism can be manual, motorized, or spring-assisted, depending on the application and required speed of operation. Our design philosophy at SanGao prioritizes robustness and longevity, ensuring our switches can withstand the mechanical stresses and electrical demands of daily operation.

Detailed Product Specifications

To provide a clear and professional overview of our product capabilities, we have consolidated our key parameters into a comprehensive table below.

Our commitment to excellence is reflected in every parameter we specify for our Earthing Switch products. We ensure that each unit leaving our facility is tested for performance and safety.

Frequently Asked Questions

Q1: What is the main purpose of an earthing switch?

The main purpose of an earthing switch is to provide a safe, reliable, and visible connection to earth for parts of an electrical circuit that have been isolated. This is crucial for protecting maintenance personnel from electric shock by ensuring any residual current or unexpectedly induced voltage is safely discharged to the ground before work begins.

Q2: What is the difference between an earthing switch and an isolator?

An isolator (or disconnector) is used to physically separate a circuit to create an isolation gap, ensuring it is de-energized for work. However, it is not designed to make or break current. An earthing switch is used after isolation to ground the isolated section. While an isolator provides isolation, an earthing switch provides safety grounding. They are often combined into a single apparatus known as an isolator-earthing switch combination.

Q3: How do I select the right earthing switch for my application?

Selecting the right earthing switch involves considering several key factors. You must match the rated voltage and current ratings to your system's requirements. The type of operating mechanism manual for simplicity, motorized for remote operation is another critical choice. The short-circuit current rating of the switch must be equal to or greater than the maximum fault current available at the installation point. Always consult the manufacturer's specifications and ensure compliance with relevant local and international standards.

Why Choose SanGao for Your Earthing Switches

With years of experience in the electrical manufacturing industry, SanGao has established itself as a leader in producing high-quality, reliable switching equipment. Our dedication to innovation and precision engineering means our Earthing Switch products are trusted by utilities and industries worldwide. We control the entire manufacturing process in our state-of-the-art factory, allowing us to guarantee the performance and durability of every unit. Our technical support team is always available to help you select the perfect product for your specific needs. For more detailed technical information or to discuss your specific requirements, please do not hesitate to contact us at Zhejiang SanGao Electric Co., Ltd. Our experts are ready to provide you with the solutions you need.
