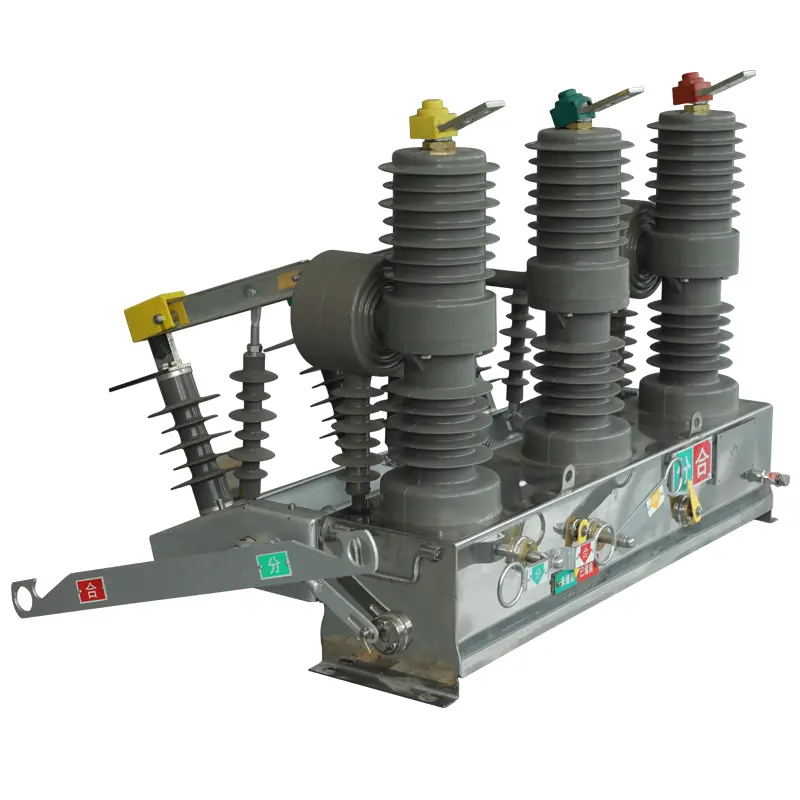

How Does a High Voltage Circuit Breaker Work?

High Voltage Circuit Breakers are essential devices in electrical power systems, designed to protect electrical equipment from overloads and short circuits. These devices are critical in ensuring safety and reliability across power transmission networks. Zhejiang SanGao Electric Co., Ltd. has been a trusted provider of high-quality HV circuit breakers for decades, delivering cutting-edge technology and reliable solutions to the global market.

Table of Contents

• What is a High Voltage Circuit Breaker?
• How Does a High Voltage Circuit Breaker Work?
• Which Types of High Voltage Circuit Breakers Are Common?
• Why Is Maintenance Important for HV Circuit Breakers?
• What Are the Best Practices for Installation?
• FAQ About High Voltage Circuit Breakers
• Conclusion

What is a High Voltage Circuit Breaker?

A High Voltage Circuit Breaker (HV CB) is an electrical switch designed to interrupt the flow of electricity in a high-voltage power system. Unlike low-voltage breakers used in homes, HV circuit breakers operate at voltages ranging from 72.5 kV to over 800 kV. Their main function is to protect transformers, generators, and other electrical equipment from damage caused by overloads or short circuits.

Key Functions of HV Circuit Breakers

• Interrupting abnormal current flows
• Isolating faulty equipment
• Ensuring continuity of service in electrical networks
• Enhancing safety for operators and infrastructure

How Does a High Voltage Circuit Breaker Work?

The operation of a high voltage circuit breaker involves opening and closing electrical contacts under high current conditions. The breaker must quench the electrical arc formed when interrupting the current. The working principle generally depends on the type of HV breaker:

Which Types of High Voltage Circuit Breakers Are Common?

High voltage circuit breakers come in several types. Selecting the correct type depends on system requirements, environmental conditions, and cost considerations. Zhejiang SanGao Electric Co., Ltd. provides a wide range of HV circuit breakers to match different industry needs.

• Air-Insulated Circuit Breakers (ACB)
• SF6 Gas-Insulated Circuit Breakers (GIS)
• Vacuum Circuit Breakers (VCB)
• Oil Circuit Breakers (OCB)

Each type has its advantages and is suitable for different scenarios. For example, GIS is ideal for urban substations with space limitations, whereas VCB is preferred for environmentally sensitive areas.

Why Is Maintenance Important for HV Circuit Breakers?

Regular maintenance ensures that high voltage circuit breakers perform reliably during faults. Improper or delayed maintenance can lead to failures, costly downtime, and potential hazards.

Maintenance Tips

• Perform routine inspections for wear and tear.
• Check insulation resistance and contact alignment.
• Test the trip mechanism regularly.
• Ensure proper lubrication and clean contacts.
• Monitor SF6 gas pressure in gas-insulated breakers.

Zhejiang SanGao Electric Co., Ltd. offers maintenance services and guidance to maximize the operational lifespan of your HV circuit breakers.

What Are the Best Practices for Installation?

Proper installation is crucial for HV circuit breakers to operate effectively. The following guidelines can improve safety and efficiency:

1. Ensure the foundation is level and capable of supporting the breaker’s weight.
2. Follow manufacturer guidelines for electrical connections and grounding.
3. Verify insulation levels before energizing the system.
4. Maintain adequate clearance between phases and grounded components.
5. Conduct pre-commissioning tests to confirm proper operation.

Zhejiang SanGao Electric Co., Ltd. provides detailed installation manuals and onsite support for all its high voltage circuit breakers.

FAQ About High Voltage Circuit Breakers

Q1: What is the difference between an HV circuit breaker and a low-voltage breaker?
A1: HV circuit breakers operate at voltages above 72.5 kV, while low-voltage breakers handle voltages below 1 kV. HV breakers are designed to interrupt much higher current levels and require complex mechanisms such as SF6 gas or vacuum for arc quenching.

Q2: How often should HV circuit breakers be maintained?
A2: Maintenance frequency depends on the type of breaker and operating conditions. Generally, inspections are recommended every 1–2 years, with detailed servicing every 3–5 years. Environmental factors such as humidity, dust, or pollution may require more frequent checks.

Q3: Why is SF6 gas used in some HV breakers?
A3: SF6 gas has excellent dielectric properties and arc-quenching ability. It allows for compact designs, reduces maintenance, and ensures reliable operation under high-voltage conditions. Zhejiang SanGao Electric Co., Ltd. uses high-purity SF6 in its GIS products for maximum efficiency.

Q4: Can HV circuit breakers be used in renewable energy systems?
A4: Yes, HV circuit breakers are increasingly used in renewable energy networks such as wind farms and solar power plants to protect equipment and maintain grid stability.

Q5: How do I choose the right HV circuit breaker for my system?
A5: Selection depends on voltage level, current rating, environmental conditions, and system requirements. Consulting experienced providers like Zhejiang SanGao Electric Co., Ltd. can ensure you choose the optimal solution.

Conclusion

High Voltage Circuit Breakers are indispensable in modern power systems, providing safety, reliability, and efficiency. Understanding their working principles, types, maintenance needs, and installation practices helps operators and engineers optimize their electrical networks. Zhejiang SanGao Electric Co., Ltd. continues to lead the industry by offering innovative HV circuit breakers and professional support worldwide.

For more information or to explore our range of high voltage circuit breakers, contact us today and let our experts guide you in choosing the perfect solution for your needs.
