How Does Earthing Switches Work?

Earthing switches are fundamental components in electrical power systems, designed to ensure safety during maintenance and repair operations. Their primary function is to securely connect a de-energized circuit to the earth, preventing the risk of electric shock from accidental re-energization or induced voltages. Understanding their operation is critical for engineers and technicians working with high and medium-voltage switchgear.

At its core, an earthing switch is a mechanical switching device capable of conducting expected current for a specified time under abnormal conditions, such as short-circuits, but not rated to carry load current under normal circuit conditions. They are typically installed on both sides of a circuit breaker within a substation, providing a visible earth connection for maintenance crews.

The operation of an earthing switch can be manual, motor-operated, or automated as part of a larger interlocked system. When a circuit is de-energized, the switch closes to connect the isolated section to the grounding grid. This action safely discharges any residual electrical energy, creating a secure working environment. The robust design ensures it can withstand the immense electrodynamic and thermal stresses of fault currents.

Key Components and Their Functions

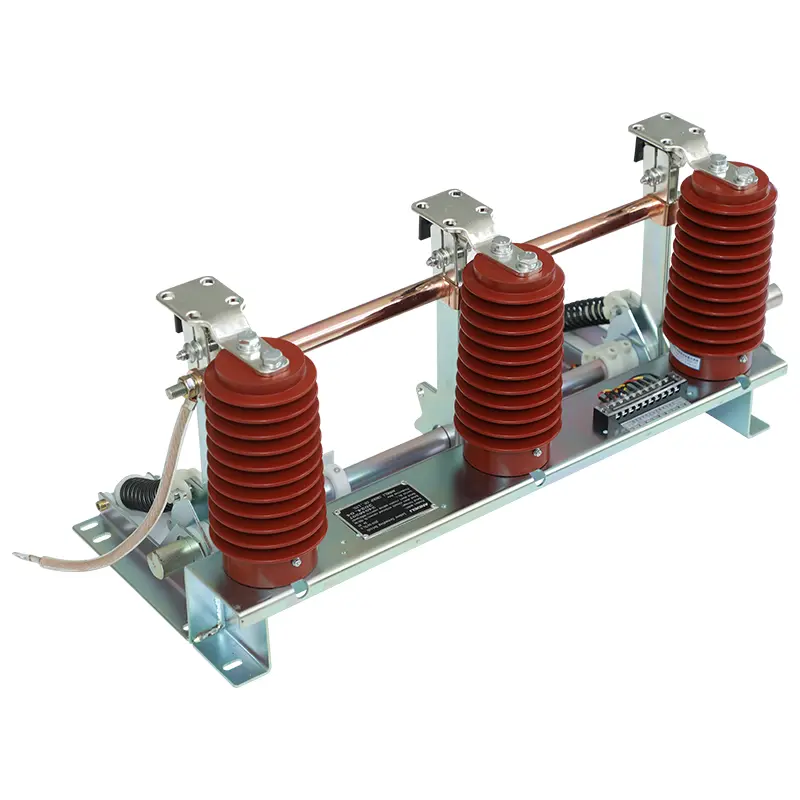

An earthing switch comprises several key components. The main contacts are responsible for making the electrical connection to the earth. The operating mechanism, which can be spring, hydraulic, or motor-driven, provides the force to open and close these contacts. The insulating elements, often made of porcelain or composite polymer, provide necessary isolation from the earthed enclosure. Finally, the interlocking system is perhaps the most critical safety feature, preventing the switch from operating unless the associated circuit breaker is open and the line is fully isolated.

Detailed Product Parameters of SanGao Earthing Switches

Our factory designs and manufactures a comprehensive range of earthing switches to meet diverse application needs. We utilize superior materials and rigorous testing protocols to ensure every product delivers unmatched reliability and longevity. Below is a detailed list of our standard product parameters.

For a clear comparison of our main product series, refer to the table below.

Our commitment to excellence is reflected in these specifications. We continuously invest in research to enhance the performance and safety features of our earthing switch products.

Frequently Asked Questions

Q1: What is the primary purpose of an earthing switch?

The primary purpose of an earthing switch is to provide safety for personnel and equipment. After a high-voltage circuit is isolated and de-energized, the earthing switch is closed to connect the conductors to the earth. This ensures that any accidental contact with the line or induced voltages are immediately discharged to the ground, preventing electric shock and creating a safe zone for maintenance work.

Q2: What is the difference between an earthing switch and a circuit breaker?

While both are switching devices, they serve entirely different functions. A circuit breaker is designed to interrupt and make currents under both normal and fault conditions, such as a short-circuit. It is rated to carry load current. An earthing switch, however, is not designed to interrupt any current. It is only operated on an already de-energized circuit to apply a safe earth connection and is rated only to carry and withstand short-circuit current for a limited time.

Q3: Why are interlocking systems so crucial for earthing switches?

Interlocking systems are a vital safety feature to prevent catastrophic errors. They ensure that an earthing switch cannot be closed onto a live circuit. Common interlocking schemes prevent the earthing switch from operating unless the associated circuit breaker is in the open position and the isolating switches are also open, physically proving the circuit is de-energized. This eliminates the risk of closing the earth switch onto an energized line, which would cause a major short-circuit accident.
